xml_utils Class Reference

#include <xml_utils.h>

Collaboration diagram for xml_utils:

[legend]

Public Member Functions
	xml_utils (format_output::xml_formatter *xo, symbol_collection const &s, size_t nc, extra_images const &extra)
void	output_symbol_bytes (std::ostream &out, symbol_entry const *symb, size_t sym_id, op_bfd const &abfd)
bool	output_summary_data (std::ostream &out, count_array_t const &summary, size_t pclass)
size_t	get_symbol_index (sym_iterator const it)
void	output_program_structure (std::ostream &out)
void	build_subclasses (std::ostream &out)
Static Public Member Functions
static std::string	get_timer_setup (size_t count)
static std::string	get_event_setup (std::string event, size_t count, std::string unit_mask)
static std::string	get_profile_header (std::string cpu_name, double const speed)
static void	set_nr_cpus (size_t cpus)
static void	set_nr_events (size_t events)
static void	set_has_nonzero_masks ()
static void	add_option (tag_t tag, bool value)
static void	add_option (tag_t tag, std::string const &value)
static void	add_option (tag_t tag, std::vector< std::string > const &value)
static void	add_option (tag_t tag, std::list< std::string > const &value)
static void	output_xml_header (std::string const &command_options, std::string const &cpu_info, std::string const &events)
Private Attributes
bool	multiple_events
bool	has_subclasses
size_t	bytes_index
extra_images const &	extra_found_images
Static Private Attributes
static bool	has_nonzero_masks = false
static size_t	events_index = 0

---

Detailed Description

Definition at line 24 of file xml_utils.h.

---

Constructor & Destructor Documentation

xml_utils::xml_utils	(	format_output::xml_formatter *	xo,
		symbol_collection const &	s,
		size_t	nc,
		extra_images const &	extra
	)

Definition at line 112 of file xml_utils.cpp.

References classes, multiple_events, nr_classes, nr_cpus, symbols_begin, symbols_end, and profile_classes::v.

---

Member Function Documentation

static void xml_utils::add_option	(	tag_t	tag,
		std::list< std::string > const &	value
	)			[static]

static void xml_utils::add_option	(	tag_t	tag,
		std::vector< std::string > const &	value
	)			[static]

static void xml_utils::add_option	(	tag_t	tag,
		std::string const &	value
	)			[static]

void xml_utils::add_option	(	tag_t	tag,
		bool	value
	)			[static]

Definition at line 239 of file xml_utils.cpp.

References init_attr(), and xml_options.

Referenced by handle_options().

Here is the call graph for this function:

Here is the caller graph for this function:

void xml_utils::build_subclasses

(

std::ostream &

out

)

static std::string xml_utils::get_event_setup	(	std::string	event,
		size_t	count,
		std::string	unit_mask
	)			[static]

static std::string xml_utils::get_profile_header	(	std::string	cpu_name,
		double const	speed
	)			[static]

Referenced by describe_cpu().

Here is the caller graph for this function:

size_t xml_utils::get_symbol_index

(

sym_iterator const

it

)

string xml_utils::get_timer_setup

(

size_t

count

)

[static]

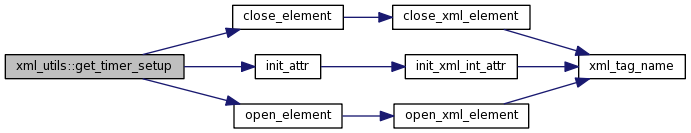

Definition at line 139 of file xml_utils.cpp.

References close_element(), init_attr(), open_element(), RTC_INTERRUPTS, and TIMER_SETUP.

Here is the call graph for this function:

void xml_utils::output_program_structure

(

std::ostream &

out

)

bool xml_utils::output_summary_data	(	std::ostream &	out,
		count_array_t const &	summary,
		size_t	pclass
	)

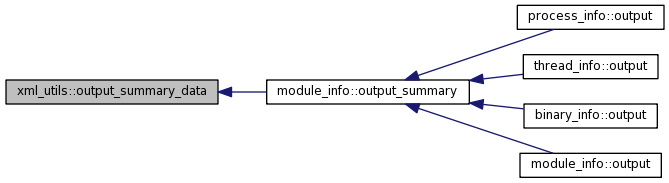

Referenced by module_info::output_summary().

Here is the caller graph for this function:

void xml_utils::output_symbol_bytes	(	std::ostream &	out,
		symbol_entry const *	symb,
		size_t	sym_id,
		op_bfd const &	abfd
	)

static void xml_utils::output_xml_header	(	std::string const &	command_options,
		std::string const &	cpu_info,
		std::string const &	events
	)			[static]

void xml_utils::set_has_nonzero_masks

(

)

[static]

Definition at line 195 of file xml_utils.cpp.

References has_nonzero_masks.

void xml_utils::set_nr_cpus

(

size_t

cpus

)

[static]

Definition at line 185 of file xml_utils.cpp.

References nr_cpus.

void xml_utils::set_nr_events

(

size_t

events

)

[static]

Definition at line 190 of file xml_utils.cpp.

References nr_events.

---

Field Documentation

size_t xml_utils::bytes_index [private]

Definition at line 57 of file xml_utils.h.

size_t xml_utils::events_index = 0 [static, private]

Definition at line 60 of file xml_utils.h.

extra_images const& xml_utils::extra_found_images [private]

Definition at line 58 of file xml_utils.h.

bool xml_utils::has_nonzero_masks = false [static, private]

Definition at line 59 of file xml_utils.h.

Referenced by set_has_nonzero_masks().

bool xml_utils::has_subclasses [private]

Definition at line 56 of file xml_utils.h.

bool xml_utils::multiple_events [private]

Definition at line 55 of file xml_utils.h.

Referenced by xml_utils().

---

The documentation for this class was generated from the following files:

• libpp/xml_utils.h
• libpp/xml_utils.cpp
