op_bfd Class Reference

#include <op_bfd.h>

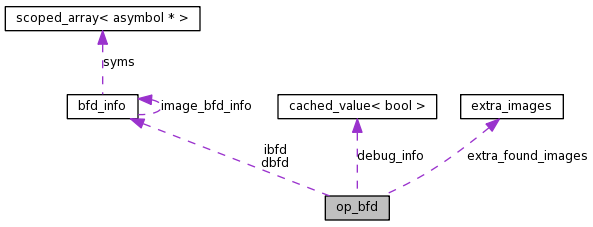

Collaboration diagram for op_bfd:

Public Member Functions
	op_bfd (std::string const &filename, string_filter const &symbol_filter, extra_images const &extra_images, bool &ok)
	op_bfd (uint64_t spu_offset, std::string const &filename, string_filter const &symbol_filter, extra_images const &extra_images, bool &ok)
std::string	get_embedding_filename () const
	~op_bfd ()
	close an opened bfd image and free all related resources
bool	get_linenr (symbol_index_t sym_idx, bfd_vma offset, std::string &filename, unsigned int &linenr) const
void	get_symbol_range (symbol_index_t sym_idx, unsigned long long &start, unsigned long long &end) const
void	get_vma_range (bfd_vma &start, bfd_vma &end) const
bfd_vma	offset_to_pc (bfd_vma offset) const
unsigned long	get_start_offset (bfd_vma vma=0) const
std::string	get_filename () const
size_t	bfd_arch_bits_per_address () const
bool	has_debug_info () const
	return true if binary contain some debug information
bool	symbol_has_contents (symbol_index_t sym_idx)
bool	get_symbol_contents (symbol_index_t sym_index, unsigned char *contents) const
bool	valid () const
bfd_vma	get_vma_adj (void) const
Data Fields
std::vector< op_bfd_symbol >	syms
	sorted vector by vma of interesting symbol.
Private Types
typedef std::list< op_bfd_symbol >	symbols_found_t
	temporary container type for getting symbols
typedef std::map< std::string, u32 >	filepos_map_t
Private Member Functions
void	get_symbols (symbols_found_t &symbols)
void	get_symbols_from_file (bfd_info &bfd, size_t start, op_bfd::symbols_found_t &symbols, bool debug_file)
void	add_symbols (symbols_found_t &symbols, string_filter const &symbol_filter)
size_t	symbol_size (op_bfd_symbol const &sym, op_bfd_symbol const *next) const
op_bfd_symbol const	create_artificial_symbol ()
	create an artificial symbol for a symbolless binary
uint	process_symtab (bfd_info *bfd, uint start)
Private Attributes
std::string	filename
	filename we open (not including archive path)
std::string	archive_path
	path to archive
extra_images const &	extra_found_images
	reference to extra_images
off_t	file_size
	file size in bytes
std::string	debug_filename
	corresponding debug file name
cached_value< bool >	debug_info
	true if at least one section has (flags & SEC_DEBUGGING) != 0
bfd_info	ibfd
	our main bfd object: .bfd may be NULL
bfd_info	dbfd
std::vector< asection const * >	filtered_section
filepos_map_t	filepos_map
std::string	embedding_filename
bool	anon_obj
bfd_vma	vma_adj

Detailed Description

Encapsulation of a bfd object. Simplifies open/close of bfd, enumerating symbols and retrieving informations for symbols or vma.

Use of this class relies on a std::ostream cverb

Definition at line 97 of file op_bfd.h.

Member Typedef Documentation

typedef std::map<std::string, u32> op_bfd::filepos_map_t [private]

Definition at line 293 of file op_bfd.h.

typedef std::list<op_bfd_symbol> op_bfd::symbols_found_t [private]

temporary container type for getting symbols

Definition at line 219 of file op_bfd.h.

Constructor & Destructor Documentation

op_bfd::op_bfd	(	std::string const &	filename,
		string_filter const &	symbol_filter,
		extra_images const &	extra_images,
		bool &	ok
	)

Parameters:

	filename	the name of the image file
	symbol_filter	filter to apply to symbols
	extra_images	container where all extra candidate filenames are stored
	ok	in-out parameter: on in, if not set, don't open the bfd (because it's not there or whatever). On out, it's set to false if the bfd couldn't be loaded.

op_bfd::op_bfd	(	uint64_t	spu_offset,
		std::string const &	filename,
		string_filter const &	symbol_filter,
		extra_images const &	extra_images,
		bool &	ok
	)

This constructor is used when processing an SPU profile where the SPU ELF is embedded within the PPE binary.

op_bfd::~op_bfd ( )

close an opened bfd image and free all related resources

Definition at line 190 of file op_bfd.cpp.

Member Function Documentation

void op_bfd::add_symbols	(	op_bfd::symbols_found_t &	symbols,
		string_filter const &	symbol_filter
	)			`[private]`

Add the symbols in the binary, applying filtering, and handling artificial symbols.

Definition at line 284 of file op_bfd.cpp.

References create_artificial_symbol(), cverb, syms, and vbfd.

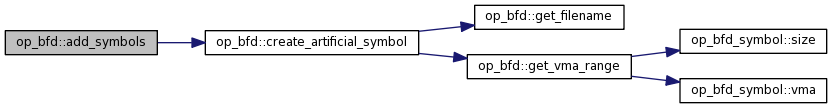

Here is the call graph for this function:

size_t op_bfd::bfd_arch_bits_per_address ( ) const

return in bits the bfd_vma size for this binary. This is needed because gprof output depend on the bfd_vma for *this* binary and do not depend on sizeof(bfd_vma)

Definition at line 472 of file op_bfd.cpp.

References bfd_info::abfd, ibfd, and bfd_info::valid().

Here is the call graph for this function:

op_bfd_symbol const op_bfd::create_artificial_symbol ( ) [private]

create an artificial symbol for a symbolless binary

Definition at line 457 of file op_bfd.cpp.

References get_filename(), and get_vma_range().

Referenced by add_symbols().

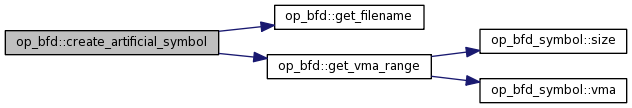

Here is the call graph for this function:

Here is the caller graph for this function:

std::string op_bfd::get_embedding_filename ( ) const [inline]

Definition at line 123 of file op_bfd.h.

References embedding_filename.

string op_bfd::get_filename ( ) const

Return the image name of the underlying binary image. For an archive, this returns the path *within* the archive, not the full path of the file.

Definition at line 466 of file op_bfd.cpp.

References filename.

Referenced by create_artificial_symbol(), and format_output::xml_formatter::get_bfd_object().

Here is the caller graph for this function:

bool op_bfd::get_linenr	(	symbol_index_t	sym_idx,
		bfd_vma	offset,
		std::string &	filename,
		unsigned int &	linenr
	)			const

Parameters:

	sym_idx	index of the symbol
	offset	fentry number
	filename	output parameter to store filename
	linenr	output parameter to store linenr.

Retrieve the relevant finename:linenr information for the sym_idx at offset. If the lookup fails, return false. In some cases this function can retrieve the filename and return true but fail to retrieve the linenr and so can return zero in linenr

Referenced by profile_container::add_samples().

Here is the caller graph for this function:

unsigned long op_bfd::get_start_offset ( bfd_vma vma = 0 ) const

If passed 0, return the file position of the .text section. Otherwise, return the filepos of a section with a matching vma.

Definition at line 195 of file op_bfd.cpp.

References filepos_map, ibfd, and bfd_info::valid().

Referenced by profile_t::set_offset().

Here is the call graph for this function:

Here is the caller graph for this function:

bool op_bfd::get_symbol_contents	(	symbol_index_t	sym_index,
		unsigned char *	contents
	)			const

Definition at line 331 of file op_bfd.cpp.

References bfd_info::abfd, ibfd, op_bfd_symbol::size(), op_bfd_symbol::symbol(), syms, and op_bfd_symbol::value().

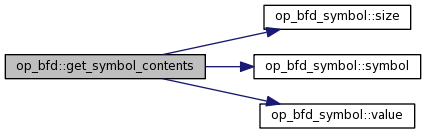

Here is the call graph for this function:

void op_bfd::get_symbol_range	(	symbol_index_t	sym_idx,
		unsigned long long &	start,
		unsigned long long &	end
	)			const

Parameters:

	sym_idx	symbol index
	start	reference to start var
	end	reference to end var

Calculates the range of sample file entries covered by sym. start and end will be filled in appropriately. If index is the last entry in symbol table, all entries up to the end of the sample file will be used. After calculating start and end they are sanitized

All errors are fatal.

Definition at line 410 of file op_bfd.cpp.

References anon_obj, cverb, op_bfd_symbol::filepos(), op_bfd_symbol::name(), op_bfd_symbol::size(), op_bfd_symbol::symbol(), syms, op_bfd_symbol::value(), vbfd, vlevel1, and op_bfd_symbol::vma().

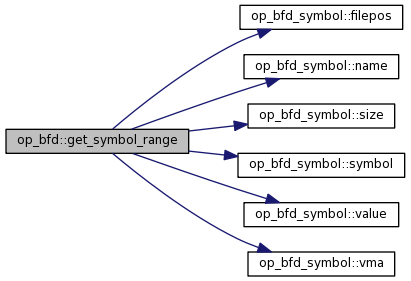

Here is the call graph for this function:

void op_bfd::get_symbols ( op_bfd::symbols_found_t & symbols ) [private]

Parse and sort in ascending order all symbols in the file pointed to by abfd that reside in a SEC_CODE section.

The symbols are filtered through the interesting_symbol() predicate and sorted with op_bfd_symbol::operator<() comparator.

Definition at line 208 of file op_bfd.cpp.

References bfd_info::abfd, boring_symbol(), dbfd, filepos_map, filtered_section, bfd_info::get_symbols(), has_debug_info(), ibfd, interesting_symbol(), bfd_info::nr_syms, bfd_info::set_image_bfd_info(), op_bfd_symbol::size(), symbol_size(), bfd_info::syms, bfd_info::valid(), and vma_adj.

Here is the call graph for this function:

void op_bfd::get_symbols_from_file	(	bfd_info &	bfd,
		size_t	start,
		op_bfd::symbols_found_t &	symbols,
		bool	debug_file
	)			`[private]`

Helper function for get_symbols. Populates bfd_syms and extracts the "interesting_symbol"s.

bfd_vma op_bfd::get_vma_adj ( void ) const [inline]

Definition at line 215 of file op_bfd.h.

References vma_adj.

void op_bfd::get_vma_range	(	bfd_vma &	start,
		bfd_vma &	end
	)			const

Parameters:

	start	reference to the start vma
	end	reference to the end vma

return in start, end the vma range for this binary object.

Definition at line 441 of file op_bfd.cpp.

References file_size, op_bfd_symbol::size(), syms, and op_bfd_symbol::vma().

Referenced by create_artificial_symbol().

Here is the call graph for this function:

Here is the caller graph for this function:

bool op_bfd::has_debug_info ( ) const

return true if binary contain some debug information

Definition at line 344 of file op_bfd.cpp.

References bfd_info::abfd, cached_value< T >::cached(), cverb, dbfd, debug_filename, debug_info, extra_found_images, filename, find_separate_debug_file(), cached_value< T >::get(), bfd_info::has_debug_info(), ibfd, open_bfd(), cached_value< T >::reset(), bfd_info::valid(), and vbfd.

Referenced by get_symbols(), and populate_for_image().

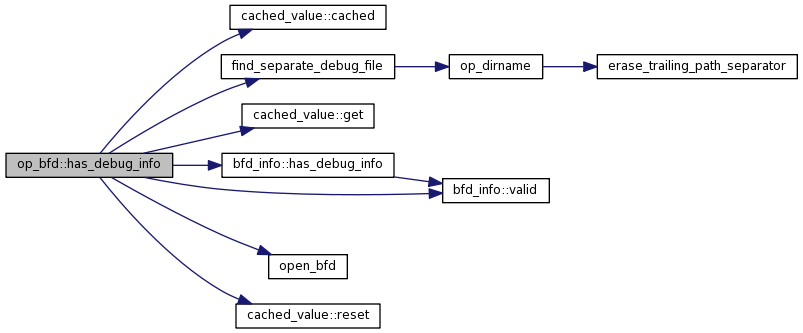

Here is the call graph for this function:

Here is the caller graph for this function:

bfd_vma op_bfd::offset_to_pc ( bfd_vma offset ) const

return the relocated PC value for the given file offset

Definition at line 305 of file op_bfd.cpp.

References bfd_info::abfd, and ibfd.

uint op_bfd::process_symtab	(	bfd_info *	bfd,
		uint	start
	)			`[private]`

bool op_bfd::symbol_has_contents ( symbol_index_t sym_idx )

Parameters:

sym_idx

symbol index

Return true or false, indicating whether or not the symbol referenced by the passed sym_idx has code available. Some symbols have no code associated with them; for example, artificial symbols created for anonymous memory samples or for stripped binaries with no symbol debug info. Additionally, if the bfd object associated with the symbol is not valid, this function will also return false.

NOTE: This call should be made prior to invoking get_symbol_contents to avoid unnecessarily allocating memory for the symbol contents.

Definition at line 320 of file op_bfd.cpp.

References op_bfd_symbol::artificial(), ibfd, op_bfd_symbol::name(), syms, and bfd_info::valid().

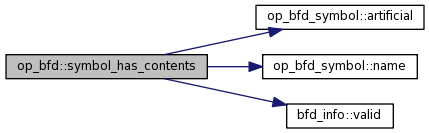

Here is the call graph for this function:

size_t op_bfd::symbol_size	(	op_bfd_symbol const &	sym,
		op_bfd_symbol const *	next
	)			const `[private]`

symbol_size - return the size of a symbol

Parameters:

	sym	symbol to get size
	next	next symbol in vma order if any

Definition at line 392 of file op_bfd.cpp.

References file_size, op_bfd_symbol::filepos(), op_bfd_symbol::section(), and op_bfd_symbol::symbol_endpos().

Referenced by get_symbols().

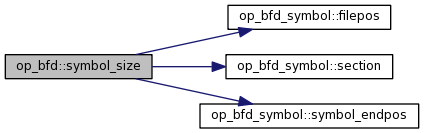

Here is the call graph for this function:

Here is the caller graph for this function:

bool op_bfd::valid ( ) const [inline]

Definition at line 213 of file op_bfd.h.

References ibfd, and bfd_info::valid().

Referenced by profile_t::set_offset().

Here is the call graph for this function:

Here is the caller graph for this function:

Field Documentation

bool op_bfd::anon_obj [private]

Definition at line 303 of file op_bfd.h.

Referenced by get_symbol_range().

std::string op_bfd::archive_path [private]

path to archive

Definition at line 267 of file op_bfd.h.

bfd_info op_bfd::dbfd [mutable, private]

Definition at line 285 of file op_bfd.h.

Referenced by get_symbols(), and has_debug_info().

std::string op_bfd::debug_filename [mutable, private]

corresponding debug file name

Definition at line 276 of file op_bfd.h.

Referenced by has_debug_info().

cached_value<bool> op_bfd::debug_info [mutable, private]

true if at least one section has (flags & SEC_DEBUGGING) != 0

Definition at line 279 of file op_bfd.h.

Referenced by has_debug_info().

std::string op_bfd::embedding_filename [private]

If spu_offset is non-zero, embedding_filename is the file containing the embedded SPU image.

Definition at line 301 of file op_bfd.h.

Referenced by get_embedding_filename().

extra_images const& op_bfd::extra_found_images [private]

reference to extra_images

Definition at line 270 of file op_bfd.h.

Referenced by has_debug_info().

off_t op_bfd::file_size [private]

file size in bytes

Definition at line 273 of file op_bfd.h.

Referenced by get_vma_range(), and symbol_size().

std::string op_bfd::filename [private]

filename we open (not including archive path)

Definition at line 264 of file op_bfd.h.

Referenced by get_filename(), and has_debug_info().

filepos_map_t op_bfd::filepos_map [private]

Definition at line 295 of file op_bfd.h.

Referenced by get_start_offset(), and get_symbols().

std::vector<asection const *> op_bfd::filtered_section [private]

sections we will avoid to use symbol from, this is needed because elf file allows sections with identical vma and we can't allow overlapping symbols. Such elf layout is used actually by kernel modules where all code section vma are set to 0.

Definition at line 291 of file op_bfd.h.

Referenced by get_symbols().

bfd_info op_bfd::ibfd [private]

our main bfd object: .bfd may be NULL

Definition at line 282 of file op_bfd.h.

Referenced by bfd_arch_bits_per_address(), get_start_offset(), get_symbol_contents(), get_symbols(), has_debug_info(), offset_to_pc(), symbol_has_contents(), and valid().

std::vector<op_bfd_symbol> op_bfd::syms

sorted vector by vma of interesting symbol.

Definition at line 183 of file op_bfd.h.

Referenced by profile_container::add_samples(), add_symbols(), get_symbol_contents(), get_symbol_range(), get_vma_range(), and symbol_has_contents().

bfd_vma op_bfd::vma_adj [private]

If a runtime binary is prelinked, then its p_vaddr field in the first PT_LOAD segment will give the address where the binary will be loaded into memory. However, the corresponding debuginfo file may have a different p_vaddr value. In profile_container::add_samples, this difference is handled by adding the "base_vma" to the sample vma. However, if the runtime binary has no symbol information at all, then the "base_vma" is obtained from the debuginfo symbol information. For opreport, this works OK, since under such conditions, ALL symbol and debug data is then obtained from the debuginfo files, and the sample vma's should match up fine with the symbol vma's in the debuginfo file. But when doing 'opannoate --assembly', the real (runtime) image is used for annotation, and, thus, we may have a mis-match between real image p_vaddr and the impliled p_vaddr stored with the samples. To handle this case, we do the following: When a bfd_info is created for a debuginfo file, we set vma_adj to the difference between runtime load address and the p_vaddr of the first PT_LOAD segment of the debuginfo file, if and only if the real image has no symbol info; otherwise vma_adj is set to 0.

Definition at line 324 of file op_bfd.h.

Referenced by get_symbols(), and get_vma_adj().

The documentation for this class was generated from the following files:

libutil++/op_bfd.h
libutil++/op_bfd.cpp

op_bfd Class Reference

Public Member Functions

Data Fields

Private Types

Private Member Functions

Private Attributes

Detailed Description

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Field Documentation
