format_output::xml_formatter Class Reference

class to output in XML format More...

#include <format_output.h>

Inheritance diagram for format_output::xml_formatter:

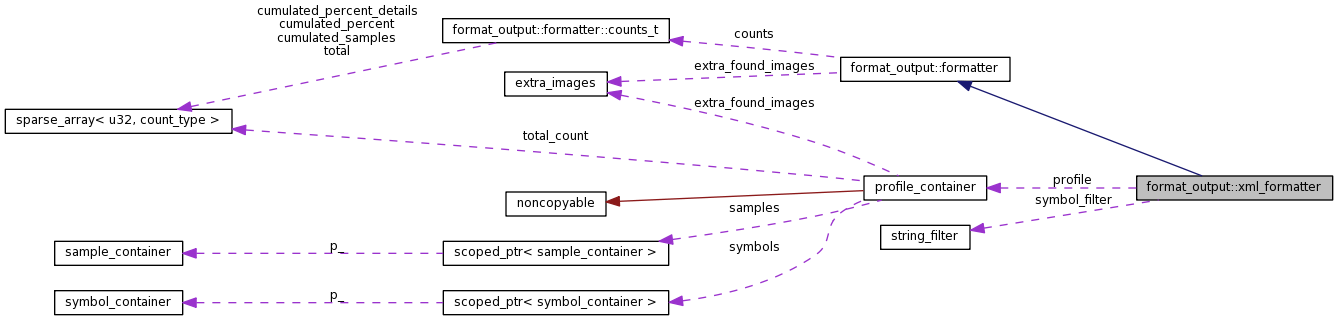

Collaboration diagram for format_output::xml_formatter:

Public Member Functions
	xml_formatter (profile_container const *profile, symbol_collection &symbols, extra_images const &extra, string_filter const &symbol_filter)
	build a ready to use formatter
void	output (std::ostream &out)
virtual void	output_symbol (std::ostream &out, symbol_entry const *symb, size_t lo, size_t hi, bool is_module)
std::string	output_symbol_details (symbol_entry const *symb, size_t &detail_index, size_t const lo, size_t const hi)
	output details for the symbol
void	show_details (bool)
	set the output_details boolean
void	output_symbol_data (std::ostream &out)
void	add_format (format_flags flag)
	add a given column
void	show_header (bool)
	set the need_header boolean to false
void	vma_format_64bit (bool)
	format for 64 bit wide VMAs
void	show_long_filenames (bool)
	show long (full path) filenames
void	show_global_percent (bool)
	use global count rather symbol count for details percent
void	set_nr_classes (size_t nr_classes)
void	output_header (std::ostream &out)
Protected Types
typedef std::string(formatter::*	fct_format )(field_datum const &)
	format callback type
typedef std::map< format_flags, field_description >	format_map_t
Protected Member Functions
void	do_output (std::ostream &out, symbol_entry const &symbol, sample_entry const &sample, counts_t &c, diff_array_t const &=diff_array_t(), bool hide_immutable_field=false)
	actually do output
size_t	output_header_field (std::ostream &out, format_flags fl, size_t padding)
	returns the nr of char needed to pad this field
size_t	output_field (std::ostream &out, field_datum const &datum, format_flags fl, size_t padding, bool hide_immutable)
	returns the nr of char needed to pad this field
format functions.
The set of formatting functions, used internally by output().
std::string	format_vma (field_datum const &)
std::string	format_symb_name (field_datum const &)
std::string	format_image_name (field_datum const &)
std::string	format_app_name (field_datum const &)
std::string	format_linenr_info (field_datum const &)
std::string	format_nr_samples (field_datum const &)
std::string	format_nr_cumulated_samples (field_datum const &)
std::string	format_percent (field_datum const &)
std::string	format_cumulated_percent (field_datum const &)
std::string	format_percent_details (field_datum const &)
std::string	format_cumulated_percent_details (field_datum const &)
std::string	format_diff (field_datum const &)
Protected Attributes
format_map_t	format_map
	stores functors for doing actual formatting
size_t	nr_classes
	number of profile classes
counts_t	counts
	total counts
format_flags	flags
	formatting flags set
bool	vma_64
	true if we need to format as 64 bits quantities
bool	long_filenames
	false if we use basename(filename) in output rather filename
bool	need_header
	true if we need to show header before the first output
bool	global_percent
extra_images const &	extra_found_images
Private Member Functions
void	output_sample_data (std::ostream &out, sample_entry const &sample, size_t count)
void	output_attribute (std::ostream &out, field_datum const &datum, format_flags fl, tag_t tag)
	output attribute in XML
bool	get_bfd_object (symbol_entry const symb, op_bfd &abfd) const
void	output_the_symbol_data (std::ostream &out, symbol_entry const symb, op_bfd &abfd)
void	output_cg_children (std::ostream &out, cg_symbol::children const cg_symb, op_bfd *&abfd)
Private Attributes
profile_container const *	profile
	container we work from
symbol_collection &	symbols
bool	need_details
	true if we need to show details for each symbols
size_t	detail_count
string_filter const &	symbol_filter

Detailed Description

class to output in XML format

Definition at line 238 of file format_output.h.

Member Typedef Documentation

typedef std::string(formatter::* format_output::formatter::fct_format)(field_datum const &) [protected, inherited]

format callback type

Definition at line 100 of file format_output.h.

typedef std::map<format_flags, field_description> format_output::formatter::format_map_t [protected, inherited]

Definition at line 132 of file format_output.h.

Constructor & Destructor Documentation

format_output::xml_formatter::xml_formatter	(	profile_container const *	profile,
		symbol_collection &	symbols,
		extra_images const &	extra,
		string_filter const &	symbol_filter
	)

build a ready to use formatter

Definition at line 605 of file format_output.cpp.

References format_output::formatter::counts, profile, profile_container::samples_count(), and format_output::formatter::counts_t::total.

Here is the call graph for this function:

Member Function Documentation

void format_output::formatter::add_format ( format_flags flag ) [inherited]

add a given column

Definition at line 129 of file format_output.cpp.

References format_output::formatter::flags.

void format_output::formatter::do_output	(	std::ostream &	out,
		symbol_entry const &	symbol,
		sample_entry const &	sample,
		counts_t &	c,
		diff_array_t const &	= `diff_array_t()`,
		bool	hide_immutable_field = `false`
	)			`[protected, inherited]`

actually do output

string format_output::formatter::format_app_name ( field_datum const & f ) [protected, inherited]

Definition at line 286 of file format_output.cpp.

References symbol_entry::app_name, format_output::formatter::extra_found_images, get_image_name(), image_name_storage::int_real_basename, image_name_storage::int_real_filename, format_output::formatter::long_filenames, and format_output::formatter::field_datum::symbol.

Referenced by format_output::formatter::formatter().

Here is the call graph for this function:

Here is the caller graph for this function:

string format_output::formatter::format_cumulated_percent ( field_datum const & f ) [protected, inherited]

Definition at line 329 of file format_output.cpp.

References sample_entry::counts, format_output::formatter::field_datum::counts, format_output::formatter::counts_t::cumulated_percent, format_output::formatter::field_datum::diff, format_output::formatter::field_datum::pclass, format_output::formatter::field_datum::sample, and format_output::formatter::counts_t::total.

Referenced by format_output::formatter::formatter().

Here is the caller graph for this function:

string format_output::formatter::format_cumulated_percent_details ( field_datum const & f ) [protected, inherited]

Definition at line 347 of file format_output.cpp.

References sample_entry::counts, format_output::formatter::field_datum::counts, format_output::formatter::counts_t::cumulated_percent_details, format_output::formatter::field_datum::pclass, format_output::formatter::field_datum::sample, and format_output::formatter::counts_t::total.

Referenced by format_output::formatter::formatter().

Here is the caller graph for this function:

string format_output::formatter::format_diff ( field_datum const & f ) [protected, inherited]

Definition at line 356 of file format_output.cpp.

References format_output::formatter::field_datum::diff, format_output::formatter::format_percent(), percent_fract_width, and percent_int_width.

Referenced by format_output::formatter::formatter().

Here is the call graph for this function:

Here is the caller graph for this function:

string format_output::formatter::format_image_name ( field_datum const & f ) [protected, inherited]

Definition at line 276 of file format_output.cpp.

References format_output::formatter::extra_found_images, get_image_name(), symbol_entry::image_name, image_name_storage::int_real_basename, image_name_storage::int_real_filename, format_output::formatter::long_filenames, and format_output::formatter::field_datum::symbol.

Referenced by format_output::formatter::formatter().

Here is the call graph for this function:

Here is the caller graph for this function:

string format_output::formatter::format_linenr_info ( field_datum const & f ) [protected, inherited]

Definition at line 296 of file format_output.cpp.

References sample_entry::file_loc, format_output::formatter::long_filenames, and format_output::formatter::field_datum::sample.

Referenced by format_output::formatter::formatter().

Here is the caller graph for this function:

string format_output::formatter::format_nr_cumulated_samples ( field_datum const & f ) [protected, inherited]

Definition at line 310 of file format_output.cpp.

References sample_entry::counts, format_output::formatter::field_datum::counts, format_output::formatter::counts_t::cumulated_samples, format_output::formatter::field_datum::diff, format_output::formatter::field_datum::pclass, and format_output::formatter::field_datum::sample.

Referenced by format_output::formatter::formatter().

Here is the caller graph for this function:

string format_output::formatter::format_nr_samples ( field_datum const & f ) [protected, inherited]

Definition at line 302 of file format_output.cpp.

References sample_entry::counts, format_output::formatter::field_datum::pclass, and format_output::formatter::field_datum::sample.

Referenced by format_output::formatter::formatter().

Here is the caller graph for this function:

string format_output::formatter::format_percent ( field_datum const & f ) [protected, inherited]

Definition at line 321 of file format_output.cpp.

References format_output::formatter::field_datum::counts, sample_entry::counts, format_output::formatter::field_datum::diff, format_output::formatter::field_datum::pclass, format_output::formatter::field_datum::sample, and format_output::formatter::counts_t::total.

Referenced by format_output::formatter::format_diff(), and format_output::formatter::formatter().

Here is the caller graph for this function:

string format_output::formatter::format_percent_details ( field_datum const & f ) [protected, inherited]

Definition at line 340 of file format_output.cpp.

References format_output::formatter::field_datum::counts, sample_entry::counts, format_output::formatter::field_datum::pclass, format_output::formatter::field_datum::sample, and format_output::formatter::counts_t::total.

Referenced by format_output::formatter::formatter().

Here is the caller graph for this function:

string format_output::formatter::format_symb_name ( field_datum const & f ) [protected, inherited]

Definition at line 270 of file format_output.cpp.

References symbol_name_storage::demangle(), symbol_entry::name, format_output::formatter::field_datum::symbol, and symbol_names.

Referenced by format_output::formatter::formatter().

Here is the call graph for this function:

Here is the caller graph for this function:

string format_output::formatter::format_vma ( field_datum const & f ) [protected, inherited]

Definition at line 264 of file format_output.cpp.

References format_output::formatter::field_datum::sample, and sample_entry::vma.

Referenced by format_output::formatter::formatter().

Here is the caller graph for this function:

bool format_output::xml_formatter::get_bfd_object	(	symbol_entry const *	symb,
		op_bfd *&	abfd
	)			const `[private]`

Retrieve a bfd object for this symbol, reopening a new bfd object only if necessary

Definition at line 658 of file format_output.cpp.

References symbol_entry::embedding_filename, format_output::formatter::extra_found_images, op_bfd::get_filename(), get_image_name(), image_format_failure, symbol_entry::image_name, image_name_storage::int_filename, report_image_error(), symbol_entry::spu_offset, and symbol_filter.

Here is the call graph for this function:

void format_output::xml_formatter::output ( std::ostream & out )

void format_output::xml_formatter::output_attribute	(	std::ostream &	out,
		field_datum const &	datum,
		format_flags	fl,
		tag_t	tag
	)			`[private]`

output attribute in XML

Referenced by output_symbol_details().

Here is the caller graph for this function:

void format_output::xml_formatter::output_cg_children	(	std::ostream &	out,
		cg_symbol::children const	cg_symb,
		op_bfd *&	abfd
	)			`[private]`

size_t format_output::formatter::output_field	(	std::ostream &	out,
		field_datum const &	datum,
		format_flags	fl,
		size_t	padding,
		bool	hide_immutable
	)			`[protected, inherited]`
