intel-pt-decoder.h File Reference

#include <stdint.h>
#include <stddef.h>
#include <stdbool.h>
#include "intel-pt-insn-decoder.h"

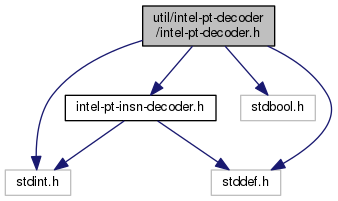

Include dependency graph for intel-pt-decoder.h:

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
struct	intel_pt_state
struct	intel_pt_buffer
struct	intel_pt_params

Macros
#define	INTEL_PT_IN_TX   (1 << 0)
#define	INTEL_PT_ABORT_TX   (1 << 1)
#define	INTEL_PT_ASYNC   (1 << 2)
#define	INTEL_PT_FUP_IP   (1 << 3)

Enumerations
enum	intel_pt_sample_type {   INTEL_PT_BRANCH = 1 << 0, INTEL_PT_INSTRUCTION = 1 << 1, INTEL_PT_TRANSACTION = 1 << 2, INTEL_PT_PTW = 1 << 3,   INTEL_PT_MWAIT_OP = 1 << 4, INTEL_PT_PWR_ENTRY = 1 << 5, INTEL_PT_EX_STOP = 1 << 6, INTEL_PT_PWR_EXIT = 1 << 7,   INTEL_PT_CBR_CHG = 1 << 8 }
enum	intel_pt_period_type { INTEL_PT_PERIOD_NONE, INTEL_PT_PERIOD_INSTRUCTIONS, INTEL_PT_PERIOD_TICKS, INTEL_PT_PERIOD_MTC }
enum	{   INTEL_PT_ERR_NOMEM = 1, INTEL_PT_ERR_INTERN, INTEL_PT_ERR_BADPKT, INTEL_PT_ERR_NODATA,   INTEL_PT_ERR_NOINSN, INTEL_PT_ERR_MISMAT, INTEL_PT_ERR_OVR, INTEL_PT_ERR_LOST,   INTEL_PT_ERR_UNK, INTEL_PT_ERR_NELOOP, INTEL_PT_ERR_MAX }
enum	intel_pt_param_flags { INTEL_PT_FUP_WITH_NLIP = 1 << 0 }

Functions
struct intel_pt_decoder *	intel_pt_decoder_new (struct intel_pt_params *params)
void	intel_pt_decoder_free (struct intel_pt_decoder *decoder)
const struct intel_pt_state *	intel_pt_decode (struct intel_pt_decoder *decoder)
unsigned char *	intel_pt_find_overlap (unsigned char *buf_a, size_t len_a, unsigned char *buf_b, size_t len_b, bool have_tsc, bool *consecutive)
int	intel_pt__strerror (int code, char *buf, size_t buflen)

Macro Definition Documentation

INTEL_PT_ABORT_TX

#define INTEL_PT_ABORT_TX   (1 << 1)

Definition at line 26 of file intel-pt-decoder.h.

INTEL_PT_ASYNC

#define INTEL_PT_ASYNC   (1 << 2)

Definition at line 27 of file intel-pt-decoder.h.

INTEL_PT_FUP_IP

#define INTEL_PT_FUP_IP   (1 << 3)

Definition at line 28 of file intel-pt-decoder.h.

INTEL_PT_IN_TX

#define INTEL_PT_IN_TX   (1 << 0)

Definition at line 25 of file intel-pt-decoder.h.

Enumeration Type Documentation

anonymous enum

anonymous enum

Enumerator
INTEL_PT_ERR_NOMEM
INTEL_PT_ERR_INTERN
INTEL_PT_ERR_BADPKT
INTEL_PT_ERR_NODATA
INTEL_PT_ERR_NOINSN
INTEL_PT_ERR_MISMAT
INTEL_PT_ERR_OVR
INTEL_PT_ERR_LOST
INTEL_PT_ERR_UNK
INTEL_PT_ERR_NELOOP
INTEL_PT_ERR_MAX

Definition at line 49 of file intel-pt-decoder.h.

intel_pt_param_flags

enum intel_pt_param_flags

Enumerator
INTEL_PT_FUP_WITH_NLIP

Definition at line 63 of file intel-pt-decoder.h.

intel_pt_period_type

enum intel_pt_period_type

Enumerator
INTEL_PT_PERIOD_NONE
INTEL_PT_PERIOD_INSTRUCTIONS
INTEL_PT_PERIOD_TICKS
INTEL_PT_PERIOD_MTC

Definition at line 42 of file intel-pt-decoder.h.

intel_pt_sample_type

enum intel_pt_sample_type

Enumerator
INTEL_PT_BRANCH
INTEL_PT_INSTRUCTION
INTEL_PT_TRANSACTION
INTEL_PT_PTW
INTEL_PT_MWAIT_OP
INTEL_PT_PWR_ENTRY
INTEL_PT_EX_STOP
INTEL_PT_PWR_EXIT
INTEL_PT_CBR_CHG

Definition at line 30 of file intel-pt-decoder.h.

Function Documentation

intel_pt__strerror()

int intel_pt__strerror	(	int	code,
		char *	buf,
		size_t	buflen
	)

Definition at line 392 of file intel-pt-decoder.c.

intel_pt_decode()

const struct intel_pt_state* intel_pt_decode

(

struct intel_pt_decoder *

decoder

)

Definition at line 2332 of file intel-pt-decoder.c.

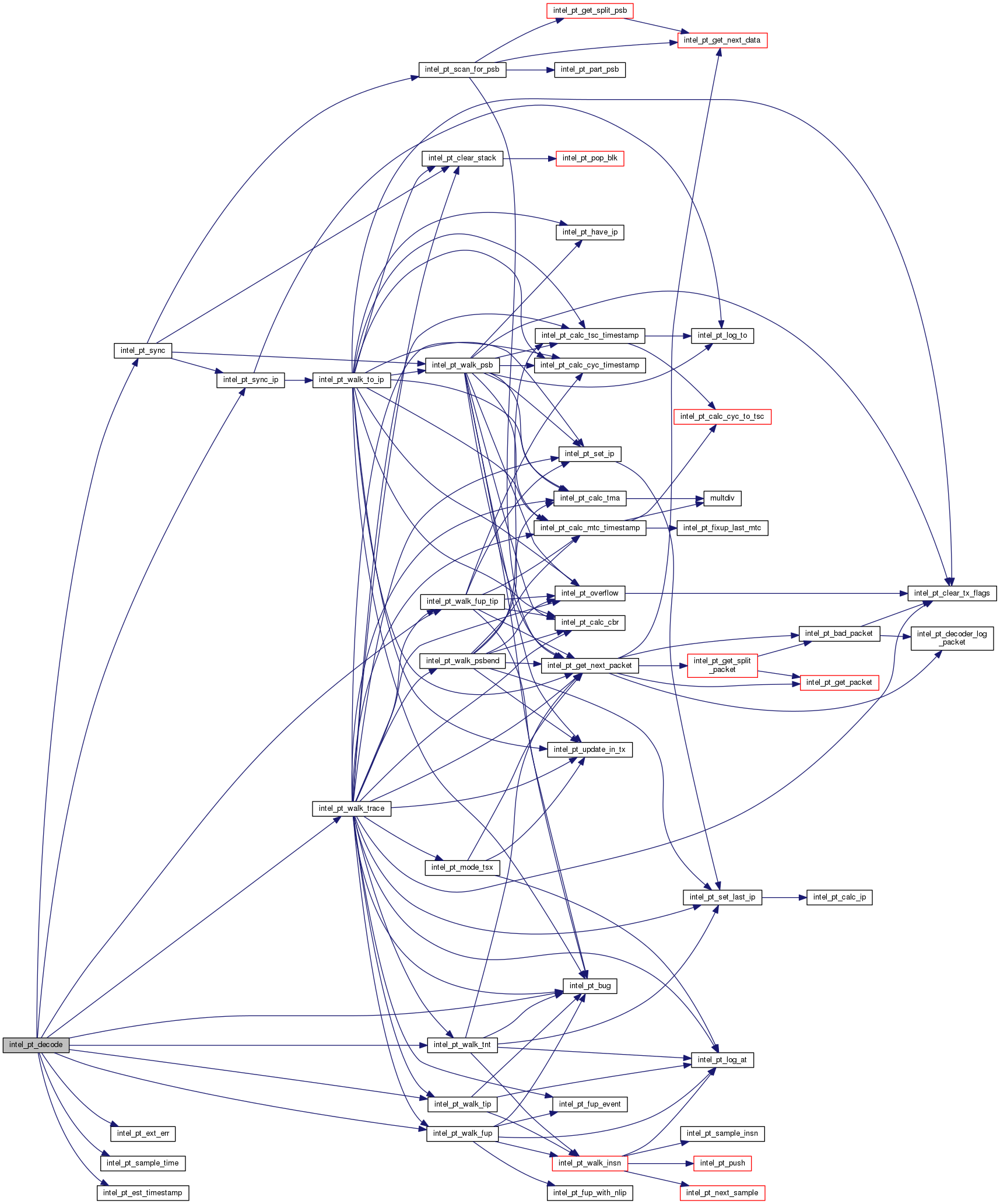

Here is the call graph for this function:

intel_pt_decoder_free()

void intel_pt_decoder_free

(

struct intel_pt_decoder *

decoder

)

Definition at line 347 of file intel-pt-decoder.c.

Here is the call graph for this function:

intel_pt_decoder_new()

struct intel_pt_decoder* intel_pt_decoder_new

(

struct intel_pt_params *

params

)

Definition at line 212 of file intel-pt-decoder.c.

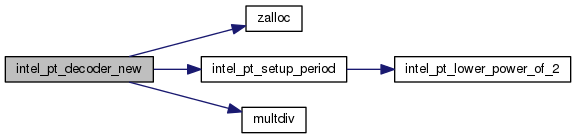

Here is the call graph for this function:

intel_pt_find_overlap()

unsigned char* intel_pt_find_overlap	(	unsigned char *	buf_a,
		size_t	len_a,
		unsigned char *	buf_b,
		size_t	len_b,
		bool	have_tsc,
		bool *	consecutive
	)

intel_pt_find_overlap - determine start of non-overlapped trace data. : first buffer : size of first buffer : second buffer : size of second buffer : can use TSC packets to detect overlap : returns true if there is data in buf_b that is consecutive to buf_a

When trace samples or snapshots are recorded there is the possibility that the data overlaps. Note that, for the purposes of decoding, data is only useful if it begins with a PSB packet.

Return: A pointer into from where non-overlapped data starts, or + if there is no non-overlapped data.

Definition at line 2641 of file intel-pt-decoder.c.

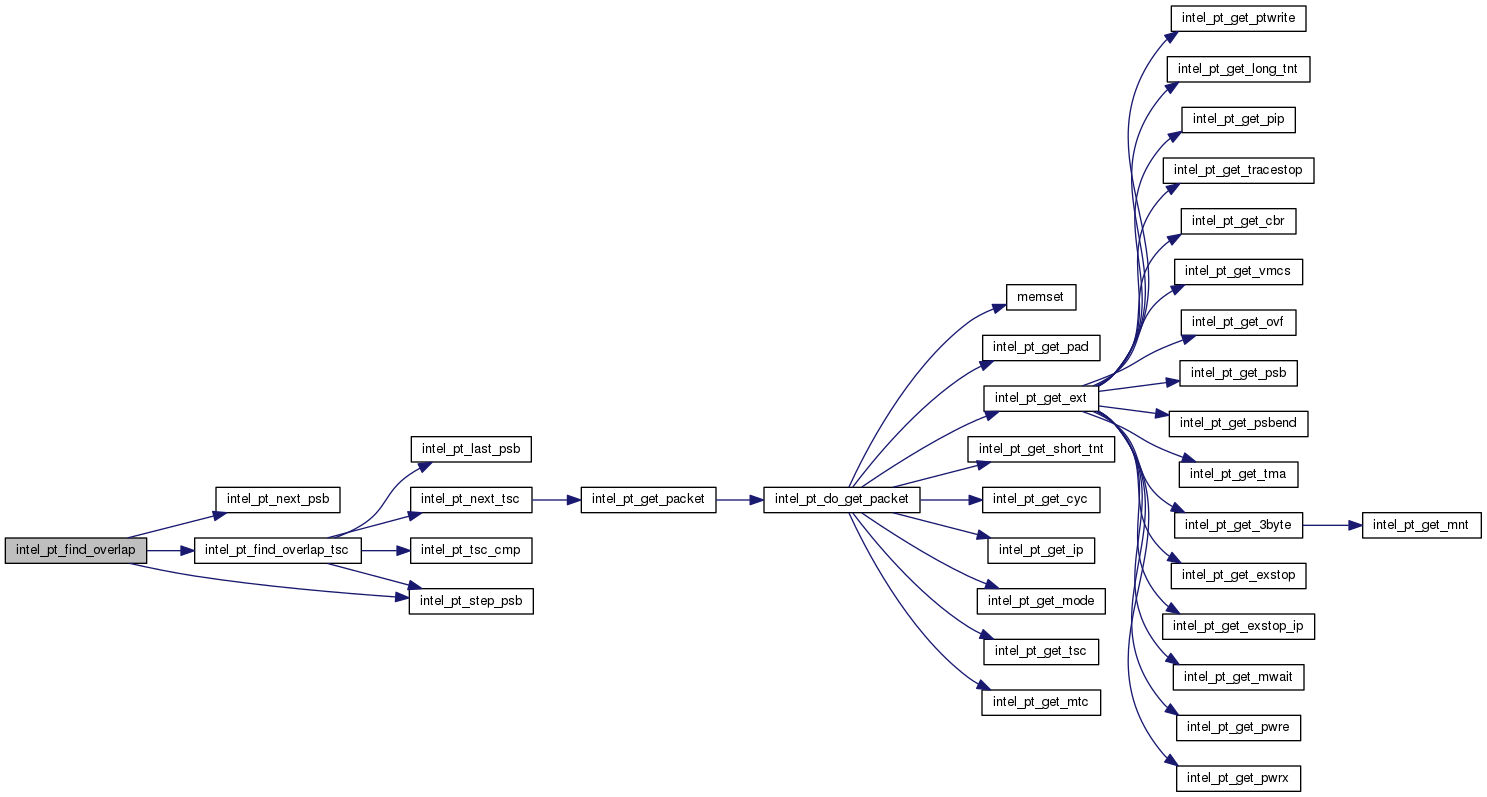

Here is the call graph for this function:
