bfd_support.h File Reference

#include "config.h"
#include "utility.h"
#include "op_types.h"
#include "locate_images.h"
#include <bfd.h>
#include <stdint.h>
#include <string>
#include <map>

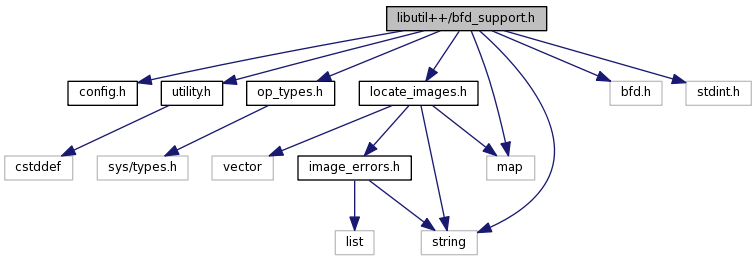

Include dependency graph for bfd_support.h:

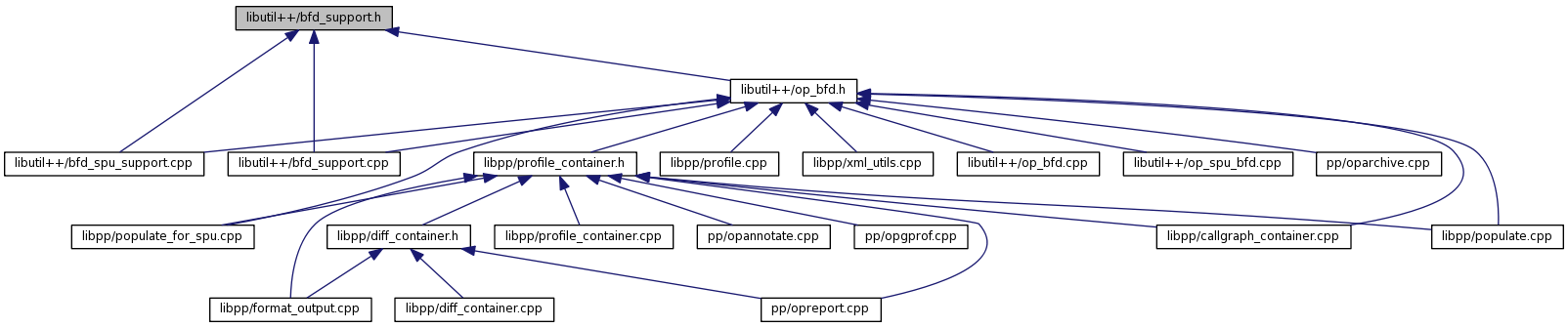

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	bfd_info
	holder for BFD state we must keep More...
struct	linenr_info
	debug info for a given pc More...
Functions
bool	find_separate_debug_file (bfd *ibfd, std::string const &filepath_in, std::string &debug_filename, extra_images const &extra)
bfd *	open_bfd (std::string const &file)
	open the given BFD
bfd *	fdopen_bfd (std::string const &file, int fd)
	open the given BFD from the fd
bfd *	spu_open_bfd (std::string const name, int fd, uint64_t offset_to_spu_elf)
	Return a BFD for an SPU ELF embedded in PPE binary file.
bool	interesting_symbol (asymbol *sym)
	Return true if the symbol is worth looking at.
bool	boring_symbol (op_bfd_symbol const &first, op_bfd_symbol const &second)
linenr_info const	find_nearest_line (bfd_info const &ibfd, op_bfd_symbol const &sym, bfd_vma offset, bool anon_obj)

Detailed Description

BFD muck we have to deal with.

Remarks:: Copyright 2005 OProfile authors; Read the file COPYING

Author:: John Levon

Definition in file bfd_support.h.

Function Documentation

bool boring_symbol	(	op_bfd_symbol const &	first,
		op_bfd_symbol const &	second
	)

return true if the first symbol is less interesting than the second symbol boring symbol are eliminated when multiple symbol exist at the same vma

Definition at line 379 of file bfd_support.cpp.

References op_bfd_symbol::hidden(), op_bfd_symbol::name(), and op_bfd_symbol::weak().

Referenced by op_bfd::get_symbols().

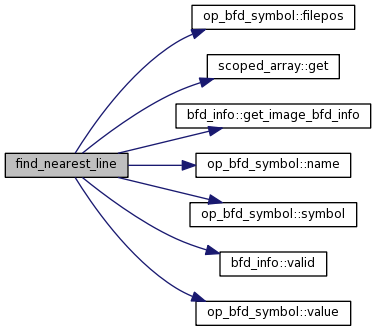

Here is the call graph for this function:

Here is the caller graph for this function:

bfd* fdopen_bfd	(	std::string const &	file,
		int	fd
	)

open the given BFD from the fd

linenr_info const find_nearest_line	(	bfd_info const &	ibfd,
		op_bfd_symbol const &	sym,
		bfd_vma	offset,
		bool	anon_obj
	)

Attempt to locate a filename + line number for the given symbol and offset.

The bfd object is either the object associated with the binary or the once associated with the separated debug info file so find_nearest_line() can't lookup the section contents of code section etc. The filepos of debuginfo symbols are different from the original file but we fixed symbol filepos earlier.

Definition at line 632 of file bfd_support.cpp.

References bfd_info::abfd, linenr_info::filename, op_bfd_symbol::filepos(), linenr_info::found, scoped_array< T >::get(), bfd_info::get_image_bfd_info(), linenr_info::line, op_bfd_symbol::name(), op_bfd_symbol::symbol(), bfd_info::syms, bfd_info::valid(), and op_bfd_symbol::value().
