opd_ibs.h File Reference

#include <stdint.h>
#include "opd_ibs_macro.h"

Include dependency graph for opd_ibs.h:

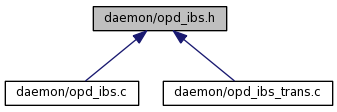

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	ibs_sample
struct	ibs_fetch_sample
struct	ibs_op_sample
Functions
void	code_ibs_fetch_sample (struct transient *trans)
void	code_ibs_op_sample (struct transient *trans)
void	opd_log_ibs_event (unsigned int event, struct transient *trans)
void	opd_log_ibs_count (unsigned int event, struct transient *trans, unsigned int count)

---

Detailed Description

AMD Family10h Instruction Based Sampling (IBS) handling.

Remarks:

Copyright 2008-2010 OProfile authors

Read the file COPYING

Author:

Jason Yeh <jason.yeh@amd.com>

Paul Drongowski <paul.drongowski@amd.com>

Suravee Suthikulpanit <suravee.suthikulpanit@amd.com> Copyright (c) 2008 Advanced Micro Devices, Inc.

Definition in file opd_ibs.h.

---

Function Documentation

void code_ibs_fetch_sample

(

struct transient *

trans

)

Handle an IBS fetch sample escape code sequence. An IBS fetch sample is represented as an escape code sequence. (See the comment for the function code_ibs_op_sample() for the sequence of entries in the event buffer.) When this function is called, the ESCAPE_CODE and IBS_FETCH_CODE have already been removed from the event buffer. Thus, 7 more event buffer entries are needed in order to process a complete IBS fetch sample.

Definition at line 193 of file opd_ibs.c.

void code_ibs_op_sample

(

struct transient *

trans

)

Handle an IBS op sample escape code sequence. An IBS op sample is represented as an escape code sequence:

IBS fetch IBS op --------------- ---------------- ESCAPE_CODE ESCAPE_CODE IBS_FETCH_CODE IBS_OP_CODE Offset Offset IbsFetchLinAd low IbsOpRip low <-- Logical (virtual) RIP IbsFetchLinAd high IbsOpRip high <-- Logical (virtual) RIP IbsFetchCtl low IbsOpData low IbsFetchCtl high IbsOpData high IbsFetchPhysAd low IbsOpData2 low IbsFetchPhysAd high IbsOpData2 high IbsOpData3 low IbsOpData3 high IbsDcLinAd low IbsDcLinAd high IbsDcPhysAd low IbsDcPhysAd high

When this function is called, the ESCAPE_CODE and IBS_OP_CODE have already been removed from the event buffer. Thus, 13 more event buffer entries are needed to process a complete IBS op sample.

The IbsFetchLinAd and IbsOpRip are the linear (virtual) addresses that were generated by the IBS hardware. These addresses are mapped into the offset.

Definition at line 267 of file opd_ibs.c.

void opd_log_ibs_count	(	unsigned int	event,
		struct transient *	trans,
		unsigned int	count
	)

Log the specified IBS cycle count.

Definition at line 353 of file opd_ibs.c.

References operf_transient::event, ibs_derived_event_stats, sfile_log_sample_count(), and trans.

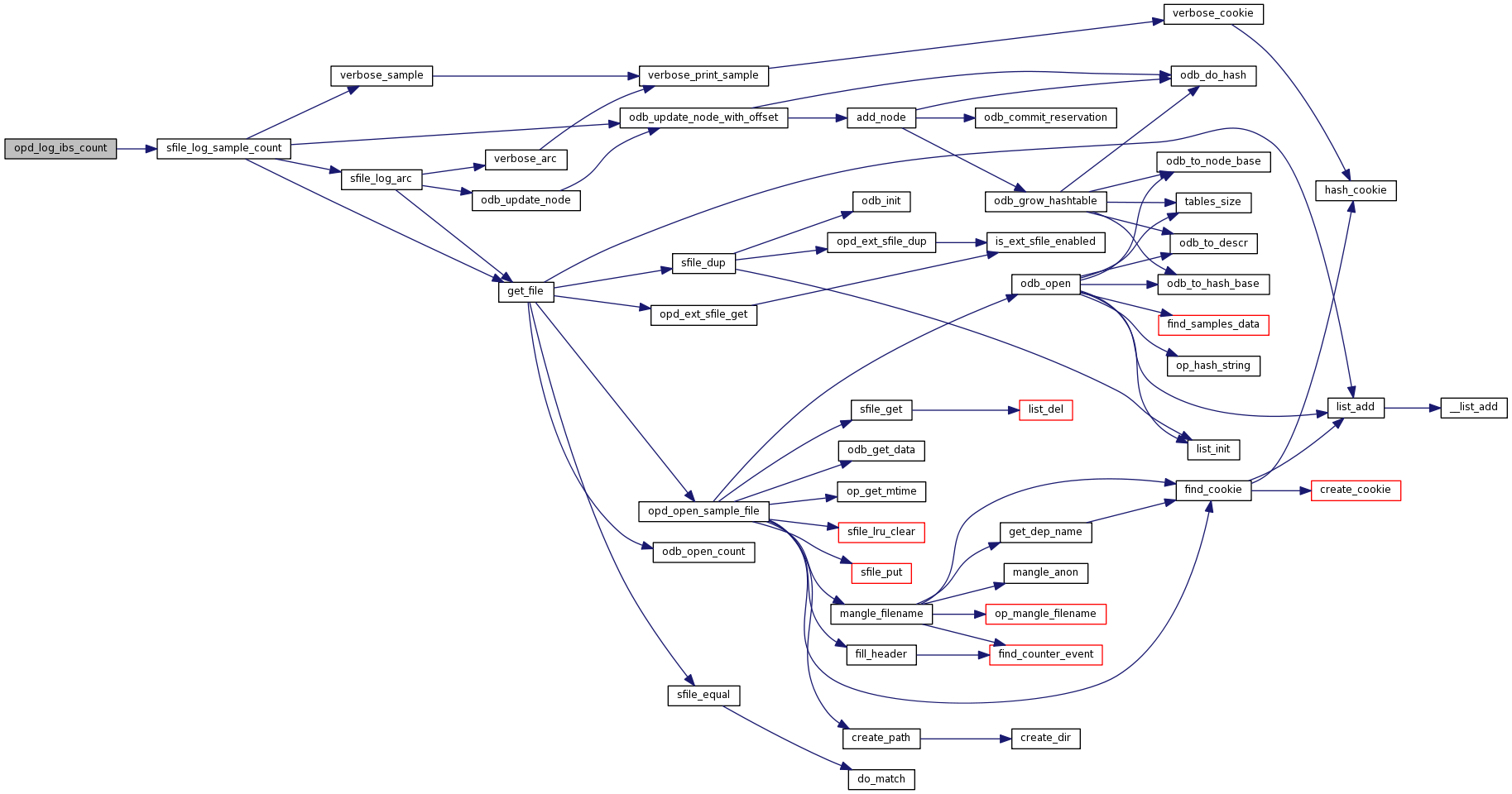

Here is the call graph for this function:

void opd_log_ibs_event	(	unsigned int	event,
		struct transient *	trans
	)

Log the specified IBS derived event.

Definition at line 344 of file opd_ibs.c.

References operf_transient::event, ibs_derived_event_stats, sfile_log_sample_count(), and trans.

Here is the call graph for this function:
