profile_spec Class Reference

#include <profile_spec.h>

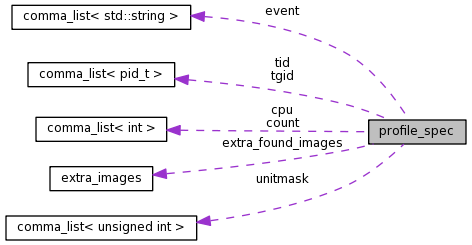

Collaboration diagram for profile_spec:

Public Member Functions
std::list< std::string >	generate_file_list (bool exclude_dependent, bool exclude_cg) const
bool	match (filename_spec const &file_spec) const
std::string	get_archive_path () const
Static Public Member Functions
static profile_spec	create (std::list< std::string > const &args, std::vector< std::string > const &image_path, std::string const &root_path)
Data Fields
extra_images	extra_found_images
	extra search path for images
Private Types
typedef void(profile_spec::*	action_t )(std::string const &)
typedef std::map< std::string, action_t >	parse_table_t
Private Member Functions
	profile_spec ()
void	parse (std::string const &tag_value)
void	set_image_or_lib_name (std::string const &image)
bool	is_valid_tag (std::string const &str)
void	parse_archive_path (std::string const &)
void	parse_session (std::string const &)
void	parse_session_exclude (std::string const &)
void	parse_image (std::string const &)
void	parse_image_exclude (std::string const &)
void	parse_lib_image (std::string const &)
void	parse_event (std::string const &)
void	parse_count (std::string const &)
void	parse_unitmask (std::string const &)
void	parse_tid (std::string const &)
void	parse_tgid (std::string const &)
void	parse_cpu (std::string const &)
action_t	get_handler (std::string const &tag_value, std::string &value)
Private Attributes
parse_table_t	parse_table
std::string	archive_path
std::string	binary
std::vector< std::string >	session
std::vector< std::string >	session_exclude
std::vector< std::string >	image
std::vector< std::string >	image_exclude
std::vector< std::string >	lib_image
comma_list< std::string >	event
comma_list< int >	count
comma_list< unsigned int >	unitmask
comma_list< pid_t >	tid
comma_list< pid_t >	tgid
comma_list< int >	cpu
std::vector< std::string >	image_or_lib_image

Detailed Description

Holds a parsed profile spec composed of tag:value pairs, as given in pp_interface documentation.

Definition at line 29 of file profile_spec.h.

Member Typedef Documentation

typedef void(profile_spec::* profile_spec::action_t)(std::string const &) [private]

Definition at line 107 of file profile_spec.h.

typedef std::map<std::string, action_t> profile_spec::parse_table_t [private]

Definition at line 108 of file profile_spec.h.

Constructor & Destructor Documentation

profile_spec::profile_spec ( ) [private]

Definition at line 54 of file profile_spec.cpp.

References parse_archive_path(), parse_count(), parse_cpu(), parse_event(), parse_image(), parse_image_exclude(), parse_lib_image(), parse_session(), parse_session_exclude(), parse_table, parse_tgid(), parse_tid(), and parse_unitmask().

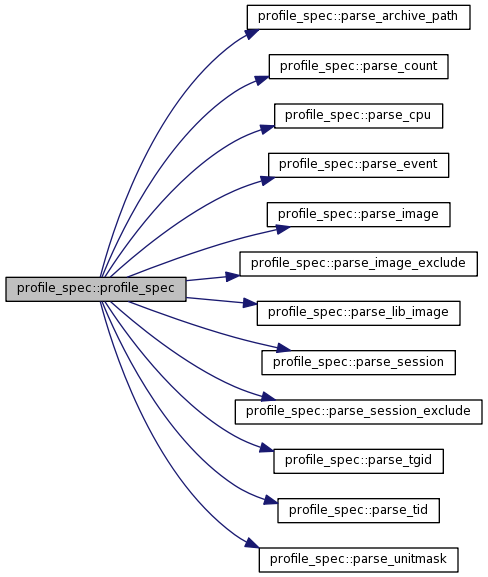

Here is the call graph for this function:

Member Function Documentation

static profile_spec profile_spec::create	(	std::list< std::string > const &	args,
		std::vector< std::string > const &	image_path,
		std::string const &	root_path
	)			`[static]`

Parameters:

	args	a vector of non options strings
	extra	extra image paths to search

Factory returning a profile_spec instance storing all valid tag:value contained in args vector doing also alias substitution, non-valid tag:value options are considered as image:value

Referenced by handle_options().

Here is the caller graph for this function:

list< string > profile_spec::generate_file_list	(	bool	exclude_dependent,
		bool	exclude_cg
	)			const

Parameters:

	exclude_dependent	whether to exclude dependent sub-images
	exclude_cg	whether to exclude call graph file

Use the spec to generate the list of candidate sample files.

Definition at line 501 of file profile_spec.cpp.

References archive_path, create_file_list(), op_realpath(), and op_samples_dir.

Referenced by handle_options().

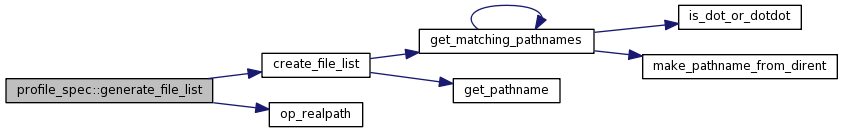

Here is the call graph for this function:

Here is the caller graph for this function:

string profile_spec::get_archive_path ( ) const

return archive name returns an empty string if not using an archive.

Definition at line 108 of file profile_spec.cpp.

References archive_path.

Referenced by handle_options().

Here is the caller graph for this function:

action_t profile_spec::get_handler	(	std::string const &	tag_value,
		std::string &	value
	)			`[private]`

Parameters:

	tag_value	input "tag:value" string
	value	if success return the value part of tag_value helper for set/is_valid_tag public interface

return null if tag is not valid, else return the pointer to member function to apply and the value in value parameter

bool profile_spec::is_valid_tag ( std::string const & str ) [private]

Parameters:

str

a "tag:value"

return true if tag is a valid tag

bool profile_spec::match ( filename_spec const & file_spec ) const

Parameters:

file_spec

the filename specification to check

return true if filename match the spec. PP:3.24 internal loop

Definition at line 224 of file profile_spec.cpp.

References filename_spec::count, count, filename_spec::cpu, cpu, filename_spec::event, event, extra_found_images, image, filename_spec::image, image_exclude, image_or_lib_image, lib_image, filename_spec::lib_image, comma_list< T >::match(), glob_filter::match(), filename_spec::tgid, tgid, filename_spec::tid, tid, filename_spec::unitmask, and unitmask.

Here is the call graph for this function:

void profile_spec::parse ( std::string const & tag_value ) [private]

Parameters:

tag_value

a "tag:value" to interpret, all error throw an invalid_argument exception.

void profile_spec::parse_archive_path ( std::string const & ) [private]

implement tag parsing: PP:3.3 to 3.16

Referenced by profile_spec().

Here is the caller graph for this function:

void profile_spec::parse_count ( std::string const & ) [private]

Referenced by profile_spec().

Here is the caller graph for this function:

void profile_spec::parse_cpu ( std::string const & ) [private]

Referenced by profile_spec().

Here is the caller graph for this function:

void profile_spec::parse_event ( std::string const & ) [private]

Referenced by profile_spec().

Here is the caller graph for this function:

void profile_spec::parse_image ( std::string const & ) [private]

Referenced by profile_spec().

Here is the caller graph for this function:

void profile_spec::parse_image_exclude ( std::string const & ) [private]

Referenced by profile_spec().

Here is the caller graph for this function:

void profile_spec::parse_lib_image ( std::string const & ) [private]

Referenced by profile_spec().

Here is the caller graph for this function:

void profile_spec::parse_session ( std::string const & ) [private]

Referenced by profile_spec().

Here is the caller graph for this function:

void profile_spec::parse_session_exclude ( std::string const & ) [private]

Referenced by profile_spec().

Here is the caller graph for this function:

void profile_spec::parse_tgid ( std::string const & ) [private]

Referenced by profile_spec().

Here is the caller graph for this function:

void profile_spec::parse_tid ( std::string const & ) [private]

Referenced by profile_spec().

Here is the caller graph for this function:

void profile_spec::parse_unitmask ( std::string const & ) [private]

Referenced by profile_spec().

Here is the caller graph for this function:

void profile_spec::set_image_or_lib_name ( std::string const & image ) [private]

Parameters:


an image or a libray name given on command line

Used for e.g. "opreport /bin/mybinary". We don't know yet if this is an application or a dependent image.

Field Documentation

std::string profile_spec::archive_path [private]

Definition at line 122 of file profile_spec.h.

Referenced by generate_file_list(), and get_archive_path().

std::string profile_spec::binary [private]

Definition at line 123 of file profile_spec.h.

comma_list<int> profile_spec::count [private]

Definition at line 130 of file profile_spec.h.

Referenced by match().

comma_list<int> profile_spec::cpu [private]

Definition at line 134 of file profile_spec.h.

Referenced by match().

comma_list<std::string> profile_spec::event [private]

Definition at line 129 of file profile_spec.h.

Referenced by match().

extra_images profile_spec::extra_found_images

extra search path for images

Definition at line 140 of file profile_spec.h.

Referenced by handle_options(), and match().

std::vector<std::string> profile_spec::image [private]

Definition at line 126 of file profile_spec.h.

Referenced by match().

std::vector<std::string> profile_spec::image_exclude [private]

Definition at line 127 of file profile_spec.h.

Referenced by match().

std::vector<std::string> profile_spec::image_or_lib_image [private]

Definition at line 136 of file profile_spec.h.

Referenced by match().

std::vector<std::string> profile_spec::lib_image [private]

Definition at line 128 of file profile_spec.h.

Referenced by match().

parse_table_t profile_spec::parse_table [private]

Definition at line 109 of file profile_spec.h.

Referenced by profile_spec().

std::vector<std::string> profile_spec::session [private]

Definition at line 124 of file profile_spec.h.

std::vector<std::string> profile_spec::session_exclude [private]

Definition at line 125 of file profile_spec.h.

comma_list<pid_t> profile_spec::tgid [private]

Definition at line 133 of file profile_spec.h.

Referenced by match().

comma_list<pid_t> profile_spec::tid [private]

Definition at line 132 of file profile_spec.h.

Referenced by match().

comma_list<unsigned int> profile_spec::unitmask [private]

Definition at line 131 of file profile_spec.h.

Referenced by match().

The documentation for this class was generated from the following files:

libpp/profile_spec.h
libpp/profile_spec.cpp
