SimpleSymbols Class Reference

#include <SimpleSymbols.hpp>

Inheritance diagram for SimpleSymbols:

Collaboration diagram for SimpleSymbols:

Public Member Functions
	SimpleSymbols (const char *name)
virtual	~SimpleSymbols ()
const std::string &	name ()
void	add (uint64_t addr, SimpleSymbolKind kind, SimpleSymbolBinding binding, const char *name)
SimpleSymbol *	find (uint64_t vma)
bool	findEnclosingFunction (uint64_t vma, std::string &fnName)
virtual bool	parse (const std::set< std::string > &directorySet, const char *pathname)=0
void	coalesce (SimpleSymbolsCoalesceCallback coalesce)
uint64_t	count ()
void	dump ()

Private Member Functions
void	sort ()

Private Attributes
struct SimpleSymbolsRepr *	R

Detailed Description

Definition at line 117 of file SimpleSymbols.hpp.

Constructor & Destructor Documentation

SimpleSymbols()

SimpleSymbols::SimpleSymbols

(

const char *

name

)

Definition at line 146 of file SimpleSymbols.cpp.

Here is the call graph for this function:

~SimpleSymbols()

virtual SimpleSymbols::~SimpleSymbols ( )

inlinevirtual

Definition at line 120 of file SimpleSymbols.hpp.

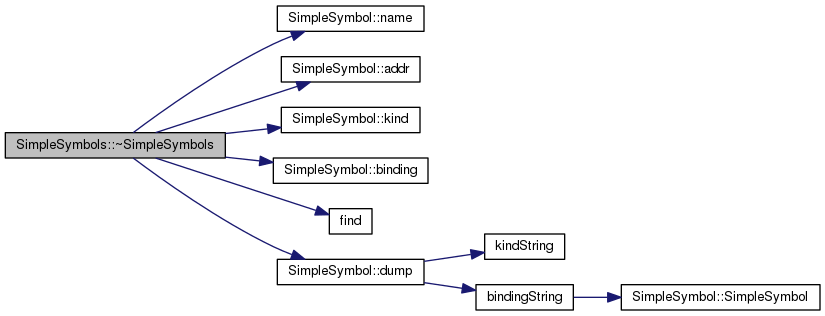

Here is the call graph for this function:

Member Function Documentation

add()

void SimpleSymbols::add	(	uint64_t	addr,
		SimpleSymbolKind	kind,
		SimpleSymbolBinding	binding,
		const char *	name
	)

Definition at line 166 of file SimpleSymbols.cpp.

Here is the caller graph for this function:

coalesce()

void SimpleSymbols::coalesce

(

SimpleSymbolsCoalesceCallback

coalesce

)

Definition at line 198 of file SimpleSymbols.cpp.

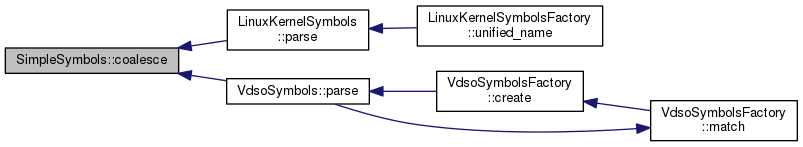

Here is the caller graph for this function:

count()

uint64_t SimpleSymbols::count

(

)

Definition at line 179 of file SimpleSymbols.cpp.

Here is the caller graph for this function:

dump()

void SimpleSymbols::dump

(

)

Definition at line 221 of file SimpleSymbols.cpp.

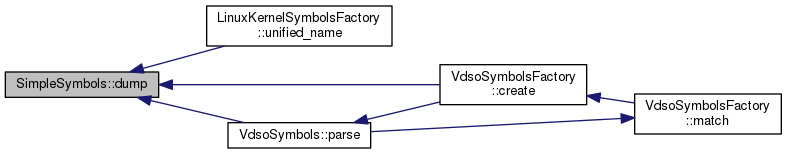

Here is the caller graph for this function:

find()

SimpleSymbol * SimpleSymbols::find

(

uint64_t

vma

)

Definition at line 232 of file SimpleSymbols.cpp.

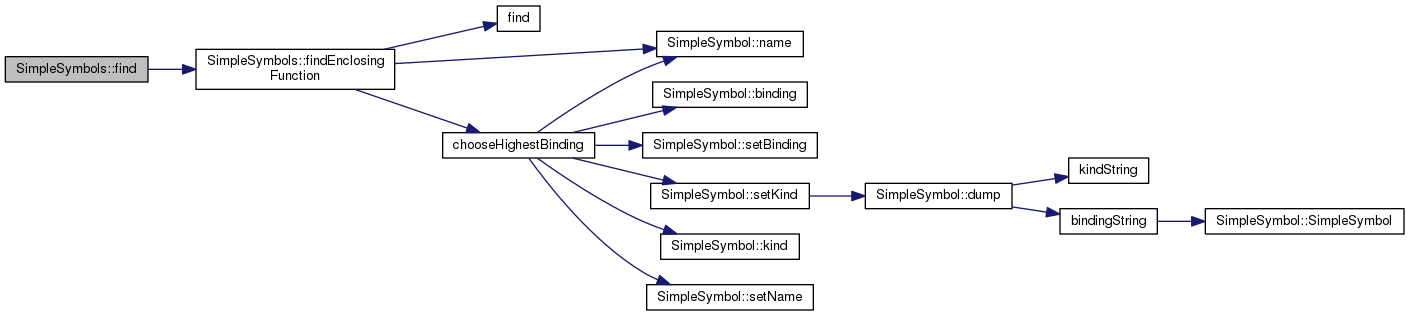

Here is the call graph for this function:

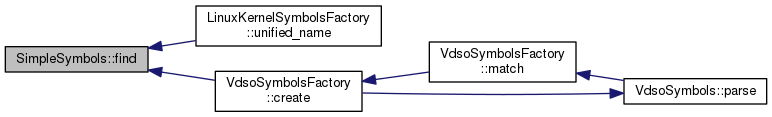

Here is the caller graph for this function:

findEnclosingFunction()

bool SimpleSymbols::findEnclosingFunction	(	uint64_t	vma,
		std::string &	fnName
	)

Definition at line 267 of file SimpleSymbols.cpp.

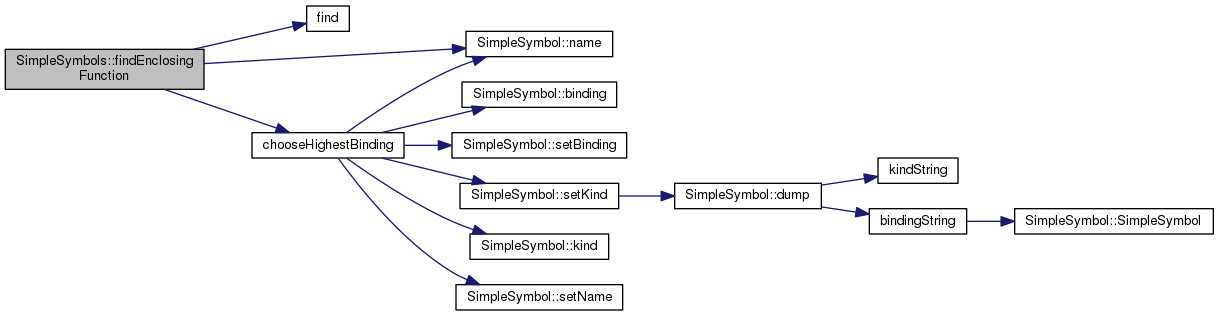

Here is the call graph for this function:

Here is the caller graph for this function:

name()

const std::string & SimpleSymbols::name

(

void

)

Definition at line 156 of file SimpleSymbols.cpp.

Here is the call graph for this function:

Here is the caller graph for this function:

parse()

virtual bool SimpleSymbols::parse ( const std::set< std::string > &  directorySet, const char *  pathname  )

pure virtual

Implemented in LinuxKernelSymbols.

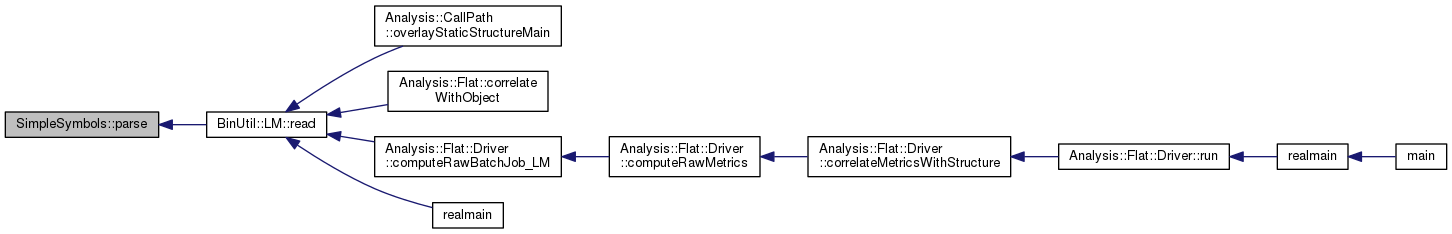

Here is the caller graph for this function:

sort()

void SimpleSymbols::sort ( )

private

Definition at line 186 of file SimpleSymbols.cpp.

Here is the call graph for this function:

Member Data Documentation

R

struct SimpleSymbolsRepr* SimpleSymbols::R

private

Definition at line 152 of file SimpleSymbols.hpp.

---

The documentation for this class was generated from the following files:

• src/lib/binutils/SimpleSymbols.hpp
• src/lib/binutils/SimpleSymbols.cpp
