HPCToolkit
Classes | Public Types | Public Member Functions | Static Public Member Functions | Private Member Functions | Private Attributes | List of all members
PGMDocHandler Class Reference

#include <PGMDocHandler.hpp>

Inheritance diagram for PGMDocHandler:
Inheritance graph
[legend]

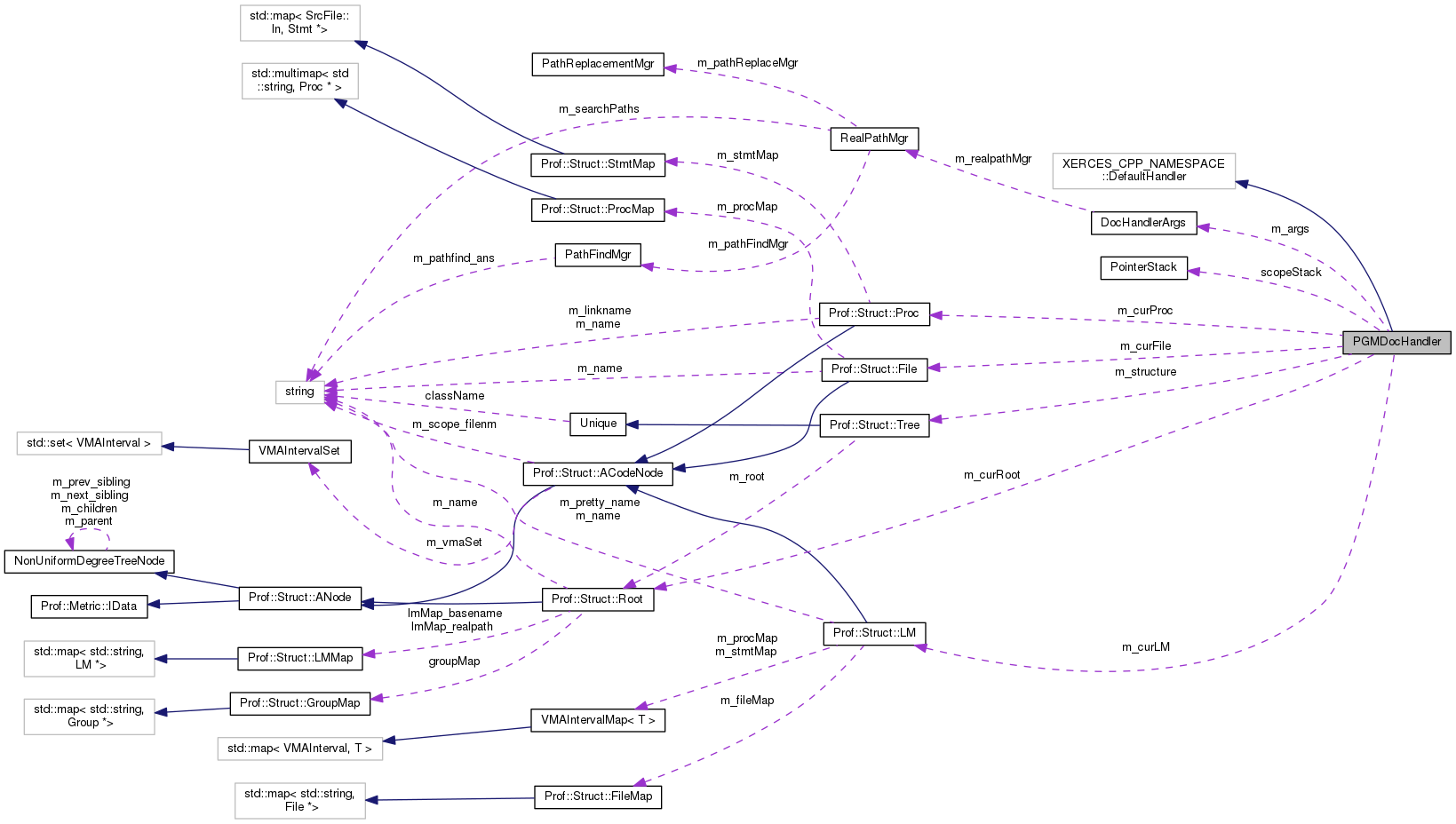

Collaboration diagram for PGMDocHandler:
Collaboration graph
[legend]

Classes

class  StackEntry_t


Public Types

enum  Doc_t { Doc_NULL, Doc_STRUCT, Doc_GROUP }


Public Member Functions

 PGMDocHandler (Doc_t ty, Prof::Struct::Tree *structure, DocHandlerArgs &args)

 ~PGMDocHandler ()

void startElement (const XMLCh *const uri, const XMLCh *const name, const XMLCh *const qname, const XERCES_CPP_NAMESPACE::Attributes &attributes)

void endElement (const XMLCh *const uri, const XMLCh *const name, const XMLCh *const qname)

void getLineAttr (SrcFile::ln &begLn, SrcFile::ln &endLn, const XERCES_CPP_NAMESPACE::Attributes &attributes)

void error (const SAXParseException &e)

void fatalError (const SAXParseException &e)

void warning (const SAXParseException &e)


Static Public Member Functions

static const char * ToString (Doc_t docty)


Private Member Functions

StackEntry_t * getStackEntry (unsigned int idx)

Prof::Struct::ANode * getCurrentScope ()

Prof::Struct::ANode * getScope (unsigned int idx)

Prof::Struct::ANode * getShadowScope (unsigned int idx)

void pushCurrentScope (Prof::Struct::ANode *scope)

void popCurrentScope ()

Prof::Struct::File * findCurrentFile ()

unsigned int findEnclosingGroupScopeDepth ()

void processGroupDocEndTag ()


Private Attributes

std::map< std::string, Prof::Struct::Proc * > idToProcMap

Doc_t m_docty

DocHandlerArgs & m_args

Prof::Struct::Tree * m_structure

double m_version

Prof::Struct::Root * m_curRoot

Prof::Struct::LM * m_curLM

Prof::Struct::File * m_curFile

Prof::Struct::Proc * m_curProc

unsigned groupNestingLvl

PointerStack scopeStack

const XMLCh *const elemStructure

const XMLCh *const elemLM

const XMLCh *const elemVariable

const XMLCh *const elemFile

const XMLCh *const elemProc

const XMLCh *const elemAlien

const XMLCh *const elemLoop

const XMLCh *const elemStmt

const XMLCh *const elemGroup

const XMLCh *const attrVer

const XMLCh *const attrId

const XMLCh *const attrName

const XMLCh *const attrFile

const XMLCh *const attrLnName

const XMLCh *const attrLine

const XMLCh *const attrVMA


Detailed Description

Definition at line 81 of file PGMDocHandler.hpp.

Member Enumeration Documentation

◆ Doc_t

enum PGMDocHandler::Doc_t
Enumerator
Doc_NULL
Doc_STRUCT
Doc_GROUP

Definition at line 83 of file PGMDocHandler.hpp.

Constructor & Destructor Documentation

◆ PGMDocHandler()

PGMDocHandler::PGMDocHandler ( Doc_t  ty,
Prof::Struct::Tree *  structure,
DocHandlerArgs &  args
)

Definition at line 205 of file PGMDocHandler.cpp.

◆ ~PGMDocHandler()

PGMDocHandler::~PGMDocHandler ( )

Definition at line 243 of file PGMDocHandler.cpp.

Here is the call graph for this function:

Member Function Documentation

◆ endElement()

void PGMDocHandler::endElement ( const XMLCh *const  uri,
const XMLCh *const  name,
const XMLCh *const  qname
)

Definition at line 506 of file PGMDocHandler.cpp.

Here is the call graph for this function:

◆ error()

void PGMDocHandler::error ( const SAXParseException &  e)

Definition at line 626 of file PGMDocHandler.cpp.

Here is the call graph for this function:

◆ fatalError()

void PGMDocHandler::fatalError ( const SAXParseException &  e)

Definition at line 633 of file PGMDocHandler.cpp.

Here is the call graph for this function:

◆ findCurrentFile()

Struct::File * PGMDocHandler::findCurrentFile ( )
private

Definition at line 652 of file PGMDocHandler.cpp.

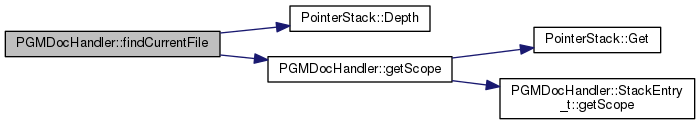

Here is the call graph for this function:
Here is the caller graph for this function:

◆ findEnclosingGroupScopeDepth()

uint PGMDocHandler::findEnclosingGroupScopeDepth ( )
private

Definition at line 665 of file PGMDocHandler.cpp.

Here is the call graph for this function:
Here is the caller graph for this function:

◆ getCurrentScope()

Prof::Struct::ANode* PGMDocHandler::getCurrentScope ( )
inlineprivate

Definition at line 174 of file PGMDocHandler.hpp.

Here is the call graph for this function:
Here is the caller graph for this function:

◆ getLineAttr()

void PGMDocHandler::getLineAttr ( SrcFile::ln &  begLn,
SrcFile::ln &  endLn,
const XERCES_CPP_NAMESPACE::Attributes &  attributes
)

Definition at line 569 of file PGMDocHandler.cpp.

Here is the call graph for this function:
Here is the caller graph for this function:

◆ getScope()

Prof::Struct::ANode* PGMDocHandler::getScope ( unsigned int  idx)
inlineprivate

Definition at line 181 of file PGMDocHandler.hpp.

Here is the call graph for this function:
Here is the caller graph for this function:

◆ getShadowScope()

Prof::Struct::ANode* PGMDocHandler::getShadowScope ( unsigned int  idx)
inlineprivate

Definition at line 188 of file PGMDocHandler.hpp.

Here is the call graph for this function:

◆ getStackEntry()

StackEntry_t* PGMDocHandler::getStackEntry ( unsigned int  idx)
inlineprivate

Definition at line 170 of file PGMDocHandler.hpp.

Here is the call graph for this function:
Here is the caller graph for this function:

◆ popCurrentScope()

void PGMDocHandler::popCurrentScope ( )
inlineprivate

Definition at line 202 of file PGMDocHandler.hpp.

Here is the call graph for this function:
Here is the caller graph for this function:

◆ processGroupDocEndTag()

void PGMDocHandler::processGroupDocEndTag ( )
private

Definition at line 679 of file PGMDocHandler.cpp.

Here is the call graph for this function:
Here is the caller graph for this function:

◆ pushCurrentScope()

void PGMDocHandler::pushCurrentScope ( Prof::Struct::ANode *  scope)
inlineprivate

Definition at line 195 of file PGMDocHandler.hpp.

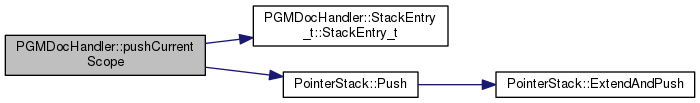

Here is the call graph for this function:
Here is the caller graph for this function:

◆ startElement()

void PGMDocHandler::startElement ( const XMLCh *const  uri,
const XMLCh *const  name,
const XMLCh *const  qname,
const XERCES_CPP_NAMESPACE::Attributes &  attributes
)

Definition at line 270 of file PGMDocHandler.cpp.

Here is the call graph for this function:

◆ ToString()

const char * PGMDocHandler::ToString ( Doc_t  docty)
static

Definition at line 610 of file PGMDocHandler.cpp.

Here is the caller graph for this function:

◆ warning()

void PGMDocHandler::warning ( const SAXParseException &  e)

Definition at line 641 of file PGMDocHandler.cpp.

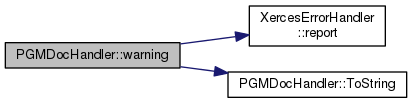

Here is the call graph for this function:

Member Data Documentation

◆ attrFile

const XMLCh* const PGMDocHandler::attrFile
private

Definition at line 260 of file PGMDocHandler.hpp.

◆ attrId

const XMLCh* const PGMDocHandler::attrId
private

Definition at line 258 of file PGMDocHandler.hpp.

◆ attrLine

const XMLCh* const PGMDocHandler::attrLine
private

Definition at line 262 of file PGMDocHandler.hpp.

◆ attrLnName

const XMLCh* const PGMDocHandler::attrLnName
private

Definition at line 261 of file PGMDocHandler.hpp.

◆ attrName

const XMLCh* const PGMDocHandler::attrName
private

Definition at line 259 of file PGMDocHandler.hpp.

◆ attrVer

const XMLCh* const PGMDocHandler::attrVer
private

Definition at line 257 of file PGMDocHandler.hpp.

◆ attrVMA

const XMLCh* const PGMDocHandler::attrVMA
private

Definition at line 263 of file PGMDocHandler.hpp.

◆ elemAlien

const XMLCh* const PGMDocHandler::elemAlien
private

Definition at line 251 of file PGMDocHandler.hpp.

◆ elemFile

const XMLCh* const PGMDocHandler::elemFile
private

Definition at line 249 of file PGMDocHandler.hpp.

◆ elemGroup

const XMLCh* const PGMDocHandler::elemGroup
private

Definition at line 254 of file PGMDocHandler.hpp.

◆ elemLM

const XMLCh* const PGMDocHandler::elemLM
private

Definition at line 247 of file PGMDocHandler.hpp.

◆ elemLoop

const XMLCh* const PGMDocHandler::elemLoop
private

Definition at line 252 of file PGMDocHandler.hpp.

◆ elemProc

const XMLCh* const PGMDocHandler::elemProc
private

Definition at line 250 of file PGMDocHandler.hpp.

◆ elemStmt

const XMLCh* const PGMDocHandler::elemStmt
private

Definition at line 253 of file PGMDocHandler.hpp.

◆ elemStructure

const XMLCh* const PGMDocHandler::elemStructure
private

Definition at line 246 of file PGMDocHandler.hpp.

◆ elemVariable

const XMLCh* const PGMDocHandler::elemVariable
private

Definition at line 248 of file PGMDocHandler.hpp.

◆ groupNestingLvl

unsigned PGMDocHandler::groupNestingLvl
private

Definition at line 235 of file PGMDocHandler.hpp.

◆ idToProcMap

std::map<std::string, Prof::Struct::Proc*> PGMDocHandler::idToProcMap
private

Definition at line 87 of file PGMDocHandler.hpp.

◆ m_args

DocHandlerArgs& PGMDocHandler::m_args
private

Definition at line 223 of file PGMDocHandler.hpp.

◆ m_curFile

Prof::Struct::File* PGMDocHandler::m_curFile
private

Definition at line 232 of file PGMDocHandler.hpp.

◆ m_curLM

Prof::Struct::LM* PGMDocHandler::m_curLM
private

Definition at line 231 of file PGMDocHandler.hpp.

◆ m_curProc

Prof::Struct::Proc* PGMDocHandler::m_curProc
private

Definition at line 233 of file PGMDocHandler.hpp.

◆ m_curRoot

Prof::Struct::Root* PGMDocHandler::m_curRoot
private

Definition at line 230 of file PGMDocHandler.hpp.

◆ m_docty

Doc_t PGMDocHandler::m_docty
private

Definition at line 222 of file PGMDocHandler.hpp.

◆ m_structure

Prof::Struct::Tree* PGMDocHandler::m_structure
private

Definition at line 224 of file PGMDocHandler.hpp.

◆ m_version

double PGMDocHandler::m_version
private

Definition at line 227 of file PGMDocHandler.hpp.

◆ scopeStack

PointerStack PGMDocHandler::scopeStack
private

Definition at line 239 of file PGMDocHandler.hpp.

The documentation for this class was generated from the following files:
