hpc-experiment.dtd.h File Reference

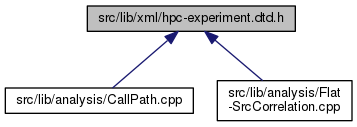

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Variables
<!-- ********************************************************************--> n<!-- HPCToolkit Experiment DTD --> n<!-- Version 2.1 --> n<!-- ********************************************************************--> n<!ELEMENT HPCToolkitExperiment(Header,(SecCallPathProfile|SecFlatProfile) *)> n<!ATTLIST HPCToolkitExperiment\n version CDATA #REQUIRED > n n<!-- ******************************************************************--> n n<!-- Info/NV:flexible name-value pairs:(n) ame;(t) ype;(v) alue --> n<!ELEMENT Info(NV *)> n<!ATTLIST Info\n n CDATA #IMPLIED > n<!ELEMENT NV EMPTY > n<!ATTLIST NV\n n CDATA #REQUIRED\n t CDATA #IMPLIED\n v CDATA #REQUIRED > n n<!-- ******************************************************************--> n<!-- Header --> n<!-- ******************************************************************--> n<!ELEMENT Header(Info *)> n<!ATTLIST Header\n n CDATA #REQUIRED > n n<!-- ******************************************************************--> n<!-- Section Header --> n<!-- ******************************************************************--> n<!ELEMENT SecHeader(MetricTable?, MetricDBTable?, TraceDBTable?, LoadModuleTable?, FileTable?, ProcedureTable?, Info *)> n n<!-- MetricTable:--> n<!ELEMENT MetricTable(Metric) * > n n<!-- Metric:(i) d;(n) ame --> n<!--(v) alue-type:transient type of values --> n<!--(t) ype:persistent type of metric --> n<!-- fmt:format;show;--> n<!ELEMENT Metric(MetricFormula *, Info?)> n<!ATTLIST Metric\n i CDATA #REQUIRED\n n CDATA #REQUIRED\n es CDATA #IMPLIED\n em CDATA #IMPLIED\n ep CDATA #IMPLIED\n v(raw|final|derived-incr|derived) \"raw\\ t (inclusive|exclusive|nil) \nil\\ partner CDATA #IMPLIED\ fmt CDATA #IMPLIED\ show (1|0) \1\\ show-percent (1|0) \1> n n<!-- MetricFormula represents derived metrics: (t)ype; (frm): formula --> n<!ELEMENT MetricFormula (Info?)> n<!ATTLIST MetricFormula\ t (combine|finalize) \finalize\\ i CDATA #IMPLIED\ frm CDATA #REQUIRED> n n<!-- Metric data, used in sections: (n)ame [from Metric]; (v)alue --> n<!ELEMENT M EMPTY> n<!ATTLIST M\ n CDATA #REQUIRED\ v CDATA #REQUIRED> n n<!-- MetricDBTable: --> n<!ELEMENT MetricDBTable (MetricDB)*> n n<!-- MetricDB: (i)d; (n)ame --> n<!-- (t)ype: persistent type of metric --> n<!-- db-glob: file glob describing files in metric db --> n<!-- db-id: id within metric db --> n<!-- db-num-metrics: number of metrics in db --> n<!-- db-header-sz: size (in bytes) of a db file header --> n<!ELEMENT MetricDB EMPTY> n<!ATTLIST MetricDB\ i CDATA #REQUIRED\ n CDATA #REQUIRED\ t (inclusive|exclusive|nil) \nil\\ partner CDATA #IMPLIED\ db-glob CDATA #IMPLIED\ db-id CDATA #IMPLIED\ db-num-metrics CDATA #IMPLIED\ db-header-sz CDATA #IMPLIED> n n<!-- TraceDBTable: --> n<!ELEMENT TraceDBTable (TraceDB)> n n<!-- TraceDB: (i)d --> n<!-- db-min-time: min beginning time stamp (global) --> n<!-- db-max-time: max ending time stamp (global) --> n<!ELEMENT TraceDB EMPTY> n<!ATTLIST TraceDB\ i CDATA #REQUIRED\ db-glob CDATA #IMPLIED\ db-min-time CDATA #IMPLIED\ db-max-time CDATA #IMPLIED\ db-header-sz CDATA #IMPLIED> n n<!-- LoadModuleTable assigns a short name to a load module --> n<!ELEMENT LoadModuleTable (LoadModule)*> n n<!ELEMENT LoadModule (Info?)> n<!ATTLIST LoadModule\ i CDATA #REQUIRED\ n CDATA #REQUIRED> n n<!-- FileTable assigns a short name to a file --> n<!ELEMENT FileTable (File)*> n n<!ELEMENT File (Info?)> n<!ATTLIST File\ i CDATA #REQUIRED\ n CDATA #REQUIRED> n n<!-- ProcedureTable assigns a short name to a procedure --> n<!ELEMENT ProcedureTable (Procedure)*> n n<!-- Info/NV: flexible name-value pairs: (n)ame; (t)ype; (v)alue --> n<!-- f: family of the procedure (fake, root, ...)--> n<!ELEMENT Procedure (Info?)> n<!ATTLIST Procedure\ i CDATA #REQUIRED\ n CDATA #REQUIRED\ f CDATA #IMPLIED> n n<!-- ****************************************************************** --> n<!-- Section: Call path profile --> n<!-- ****************************************************************** --> n<!ELEMENT SecCallPathProfile (SecHeader, SecCallPathProfileData)> n<!ATTLIST SecCallPathProfile\ i CDATA #REQUIRED\ n CDATA #REQUIRED> n n<!ELEMENT SecCallPathProfileData (PF|M)*> n<!-- Procedure frame --> n<!-- (i)d: unique identifier for cross referencing --> n<!-- (s)tatic scope id --> n<!-- (n)ame: a string or an id in ProcedureTable --> n<!-- (lm) load module: a string or an id in LoadModuleTable --> n<!-- (f)ile name: a string or an id in LoadModuleTable --> n<!-- (l)ine range: \beg-end\ (inclusive range) --> n<!-- (a)lien: whether frame is alien to enclosing P --> n<!-- (str)uct: hpcstruct node id --> n<!-- (t)ype: hpcrun node type: memory access, variable declaration, ... --> n<!-- (v)ma-range-set: \{[beg-end), [beg-end)...}\ --> n<!ELEMENT PF (PF|Pr|L|C|S|M)*> n<!ATTLIST PF\ i CDATA #IMPLIED\ s CDATA #IMPLIED\ n CDATA #REQUIRED\ lm CDATA #IMPLIED\ f CDATA #IMPLIED\ l CDATA #IMPLIED\ str CDATA #IMPLIED\ v CDATA #IMPLIED> n<!-- Procedure (static): GOAL: replace with 'P' --> n<!ELEMENT Pr (Pr|L|C|S|M)*> n<!ATTLIST Pr\ i CDATA #IMPLIED\ s CDATA #IMPLIED\ n CDATA #REQUIRED\ lm CDATA #IMPLIED\ f CDATA #IMPLIED\ l CDATA #IMPLIED\ a (1|0) \0\\ str CDATA #IMPLIED\ v CDATA #IMPLIED> n<!-- Callsite (a special StatementRange) --> n<!ELEMENT C (PF|M)*> n<!ATTLIST C\ i CDATA #IMPLIED\ s CDATA #IMPLIED\ l CDATA #IMPLIED\ str CDATA #IMPLIED\ v CDATA #IMPLIED> n n<!-- ****************************************************************** --> n<!-- Section: Flat profile --> n<!-- ****************************************************************** --> n<!ELEMENT SecFlatProfile (SecHeader, SecFlatProfileData)> n<!ATTLIST SecFlatProfile\ i CDATA #REQUIRED\ n CDATA #REQUIRED> n n<!ELEMENT SecFlatProfileData (LM|M)*> n<!-- Load module: (i)d; (n)ame; (v)ma-range-set --> n<!ELEMENT LM (F|P|M)*> n<!ATTLIST LM\ i CDATA #IMPLIED\ n CDATA #REQUIRED\ v CDATA #IMPLIED> n<!-- File --> n<!ELEMENT F (P|L|S|M)*> n<!ATTLIST F\ i CDATA #IMPLIED\ n CDATA #REQUIRED> n<!-- Procedure (Note 1) --> n<!ELEMENT P (P|A|L|S|C|M)*> n<!ATTLIST P\ i CDATA #IMPLIED\ n CDATA #REQUIRED\ l CDATA #IMPLIED\ str CDATA #IMPLIED\ v CDATA #IMPLIED> n<!-- Alien (Note 1) --> n<!ELEMENT A (A|L|S|C|M)*> n<!ATTLIST A\ i CDATA #IMPLIED\ f CDATA #IMPLIED\ n CDATA #IMPLIED\ l CDATA #IMPLIED\ str CDATA #IMPLIED\ v CDATA #IMPLIED> n<!-- Loop (Note 1,2) --> n<!ELEMENT L (A|Pr|L|S|C|M)*> n<!ATTLIST L\ i CDATA #IMPLIED\ s CDATA #IMPLIED\ l CDATA #IMPLIED\ f CDATA #IMPLIED\ str CDATA #IMPLIED\ v CDATA #IMPLIED> n<!-- Statement (Note 2) --> n<!-- (it): trace record identifier --> n<!ELEMENT S (S|M)*> n<!ATTLIST S\ i CDATA #IMPLIED\ it CDATA #IMPLIED\ s CDATA #IMPLIED\ l CDATA #IMPLIED\ str CDATA #IMPLIED\ v CDATA #IMPLIED> n<!-- Note 1: Contained Cs may not contain PFs --> n<!-- Note 2: The 's' attribute is not used for flat profiles -->	n

Variable Documentation

n

<!-- ******************************************************************** --> n<!-- HPCToolkit Experiment DTD --> n<!-- Version 2.1 --> n<!-- ******************************************************************** --> n<!ELEMENT HPCToolkitExperiment (Header, (SecCallPathProfile|SecFlatProfile)*)> n<!ATTLIST HPCToolkitExperiment\n version CDATA #REQUIRED> n n<!-- ****************************************************************** --> n n<!-- Info/NV: flexible name-value pairs: (n)ame; (t)ype; (v)alue --> n<!ELEMENT Info (NV*)> n<!ATTLIST Info\n n CDATA #IMPLIED> n<!ELEMENT NV EMPTY> n<!ATTLIST NV\n n CDATA #REQUIRED\n t CDATA #IMPLIED\n v CDATA #REQUIRED> n n<!-- ****************************************************************** --> n<!-- Header --> n<!-- ****************************************************************** --> n<!ELEMENT Header (Info*)> n<!ATTLIST Header\n n CDATA #REQUIRED> n n<!-- ****************************************************************** --> n<!-- Section Header --> n<!-- ****************************************************************** --> n<!ELEMENT SecHeader (MetricTable?, MetricDBTable?, TraceDBTable?, LoadModuleTable?, FileTable?, ProcedureTable?, Info*)> n n<!-- MetricTable: --> n<!ELEMENT MetricTable (Metric)*> n n<!-- Metric: (i)d; (n)ame --> n<!-- (v)alue-type: transient type of values --> n<!-- (t)ype: persistent type of metric --> n<!-- fmt: format; show; --> n<!ELEMENT Metric (MetricFormula*, Info?)> n<!ATTLIST Metric\n i CDATA #REQUIRED\n n CDATA #REQUIRED\n es CDATA #IMPLIED\n em CDATA #IMPLIED\n ep CDATA #IMPLIED\n v (raw|final|derived-incr|derived) \"raw\"\n t (inclusive|exclusive|nil) \"nil\"\n partner CDATA #IMPLIED\n fmt CDATA #IMPLIED\n show (1|0) \"1\"\n show-percent (1|0) \"1\"> n n<!-- MetricFormula represents derived metrics: (t)ype; (frm): formula --> n<!ELEMENT MetricFormula (Info?)> n<!ATTLIST MetricFormula\n t (combine|finalize) \"finalize\"\n i CDATA #IMPLIED\n frm CDATA #REQUIRED> n n<!-- Metric data, used in sections: (n)ame [from Metric]; (v)alue --> n<!ELEMENT M EMPTY> n<!ATTLIST M\n n CDATA #REQUIRED\n v CDATA #REQUIRED> n n<!-- MetricDBTable: --> n<!ELEMENT MetricDBTable (MetricDB)*> n n<!-- MetricDB: (i)d; (n)ame --> n<!-- (t)ype: persistent type of metric --> n<!-- db-glob: file glob describing files in metric db --> n<!-- db-id: id within metric db --> n<!-- db-num-metrics: number of metrics in db --> n<!-- db-header-sz: size (in bytes) of a db file header --> n<!ELEMENT MetricDB EMPTY> n<!ATTLIST MetricDB\n i CDATA #REQUIRED\n n CDATA #REQUIRED\n t (inclusive|exclusive|nil) \"nil\"\n partner CDATA #IMPLIED\n db-glob CDATA #IMPLIED\n db-id CDATA #IMPLIED\n db-num-metrics CDATA #IMPLIED\n db-header-sz CDATA #IMPLIED> n n<!-- TraceDBTable: --> n<!ELEMENT TraceDBTable (TraceDB)> n n<!-- TraceDB: (i)d --> n<!-- db-min-time: min beginning time stamp (global) --> n<!-- db-max-time: max ending time stamp (global) --> n<!ELEMENT TraceDB EMPTY> n<!ATTLIST TraceDB\n i CDATA #REQUIRED\n db-glob CDATA #IMPLIED\n db-min-time CDATA #IMPLIED\n db-max-time CDATA #IMPLIED\n db-header-sz CDATA #IMPLIED> n n<!-- LoadModuleTable assigns a short name to a load module --> n<!ELEMENT LoadModuleTable (LoadModule)*> n n<!ELEMENT LoadModule (Info?)> n<!ATTLIST LoadModule\n i CDATA #REQUIRED\n n CDATA #REQUIRED> n n<!-- FileTable assigns a short name to a file --> n<!ELEMENT FileTable (File)*> n n<!ELEMENT File (Info?)> n<!ATTLIST File\n i CDATA #REQUIRED\n n CDATA #REQUIRED> n n<!-- ProcedureTable assigns a short name to a procedure --> n<!ELEMENT ProcedureTable (Procedure)*> n n<!-- Info/NV: flexible name-value pairs: (n)ame; (t)ype; (v)alue --> n<!-- f: family of the procedure (fake, root, ...)--> n<!ELEMENT Procedure (Info?)> n<!ATTLIST Procedure\n i CDATA #REQUIRED\n n CDATA #REQUIRED\n f CDATA #IMPLIED> n n<!-- ****************************************************************** --> n<!-- Section: Call path profile --> n<!-- ****************************************************************** --> n<!ELEMENT SecCallPathProfile (SecHeader, SecCallPathProfileData)> n<!ATTLIST SecCallPathProfile\n i CDATA #REQUIRED\n n CDATA #REQUIRED> n n<!ELEMENT SecCallPathProfileData (PF|M)*> n<!-- Procedure frame --> n<!-- (i)d: unique identifier for cross referencing --> n<!-- (s)tatic scope id --> n<!-- (n)ame: a string or an id in ProcedureTable --> n<!-- (lm) load module: a string or an id in LoadModuleTable --> n<!-- (f)ile name: a string or an id in LoadModuleTable --> n<!-- (l)ine range: \"beg-end\" (inclusive range) --> n<!-- (a)lien: whether frame is alien to enclosing P --> n<!-- (str)uct: hpcstruct node id --> n<!-- (t)ype: hpcrun node type: memory access, variable declaration, ... --> n<!-- (v)ma-range-set: \"{[beg-end), [beg-end)...}\" --> n<!ELEMENT PF (PF|Pr|L|C|S|M)*> n<!ATTLIST PF\n i CDATA #IMPLIED\n s CDATA #IMPLIED\n n CDATA #REQUIRED\n lm CDATA #IMPLIED\n f CDATA #IMPLIED\n l CDATA #IMPLIED\n str CDATA #IMPLIED\n v CDATA #IMPLIED> n<!-- Procedure (static): GOAL: replace with 'P' --> n<!ELEMENT Pr (Pr|L|C|S|M)*> n<!ATTLIST Pr\n i CDATA #IMPLIED\n s CDATA #IMPLIED\n n CDATA #REQUIRED\n lm CDATA #IMPLIED\n f CDATA #IMPLIED\n l CDATA #IMPLIED\n a (1|0) \"0\"\n str CDATA #IMPLIED\n v CDATA #IMPLIED> n<!-- Callsite (a special StatementRange) --> n<!ELEMENT C (PF|M)*> n<!ATTLIST C\n i CDATA #IMPLIED\n s CDATA #IMPLIED\n l CDATA #IMPLIED\n str CDATA #IMPLIED\n v CDATA #IMPLIED> n n<!-- ****************************************************************** --> n<!-- Section: Flat profile --> n<!-- ****************************************************************** --> n<!ELEMENT SecFlatProfile (SecHeader, SecFlatProfileData)> n<!ATTLIST SecFlatProfile\n i CDATA #REQUIRED\n n CDATA #REQUIRED> n n<!ELEMENT SecFlatProfileData (LM|M)*> n<!-- Load module: (i)d; (n)ame; (v)ma-range-set --> n<!ELEMENT LM (F|P|M)*> n<!ATTLIST LM\n i CDATA #IMPLIED\n n CDATA #REQUIRED\n v CDATA #IMPLIED> n<!-- File --> n<!ELEMENT F (P|L|S|M)*> n<!ATTLIST F\n i CDATA #IMPLIED\n n CDATA #REQUIRED> n<!-- Procedure (Note 1) --> n<!ELEMENT P (P|A|L|S|C|M)*> n<!ATTLIST P\n i CDATA #IMPLIED\n n CDATA #REQUIRED\n l CDATA #IMPLIED\n str CDATA #IMPLIED\n v CDATA #IMPLIED> n<!-- Alien (Note 1) --> n<!ELEMENT A (A|L|S|C|M)*> n<!ATTLIST A\n i CDATA #IMPLIED\n f CDATA #IMPLIED\n n CDATA #IMPLIED\n l CDATA #IMPLIED\n str CDATA #IMPLIED\n v CDATA #IMPLIED> n<!-- Loop (Note 1,2) --> n<!ELEMENT L (A|Pr|L|S|C|M)*> n<!ATTLIST L\n i CDATA #IMPLIED\n s CDATA #IMPLIED\n l CDATA #IMPLIED\n f CDATA #IMPLIED\n str CDATA #IMPLIED\n v CDATA #IMPLIED> n<!-- Statement (Note 2) --> n<!-- (it): trace record identifier --> n<!ELEMENT S (S|M)*> n<!ATTLIST S\n i CDATA #IMPLIED\n it CDATA #IMPLIED\n s CDATA #IMPLIED\n l CDATA #IMPLIED\n str CDATA #IMPLIED\n v CDATA #IMPLIED> n<!-- Note 1: Contained Cs may not contain PFs --> n<!-- Note 2: The 's' attribute is not used for flat profiles --> n

Definition at line 1 of file hpc-experiment.dtd.h.
